Home > Products > Switches > Toggle Switches > A26HW

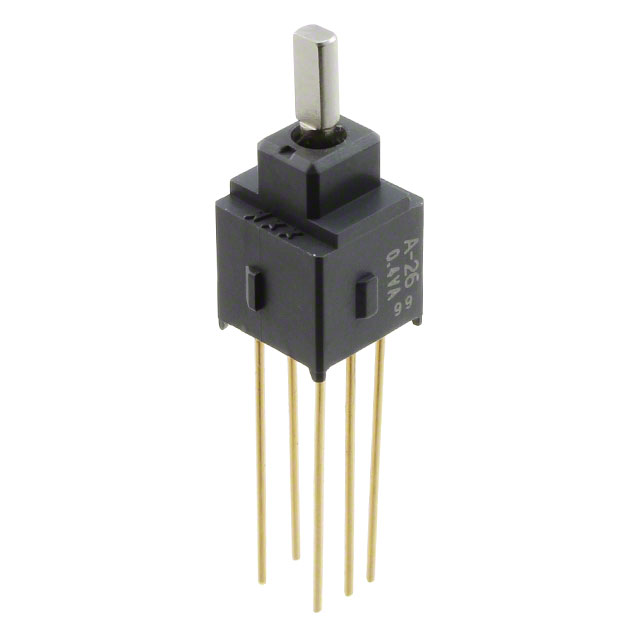

A26HW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A26HW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A26HW
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 21625 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.767

Product parameter
Data sheet

Product parameter

Part Number	A26HW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21625 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Wire Wrap
Switch Function	Mom-On-Mom	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SP3T Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SP3T	California Prop 65	Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide), Lead, and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
Bushing Thread	Unthreaded, Square	Actuator Type	Flatted
Actuator Material	Brass, Nickel Plated	Actuator Length	6.30mm
