Home > Products > Switches > Toggle Switches > A24JW

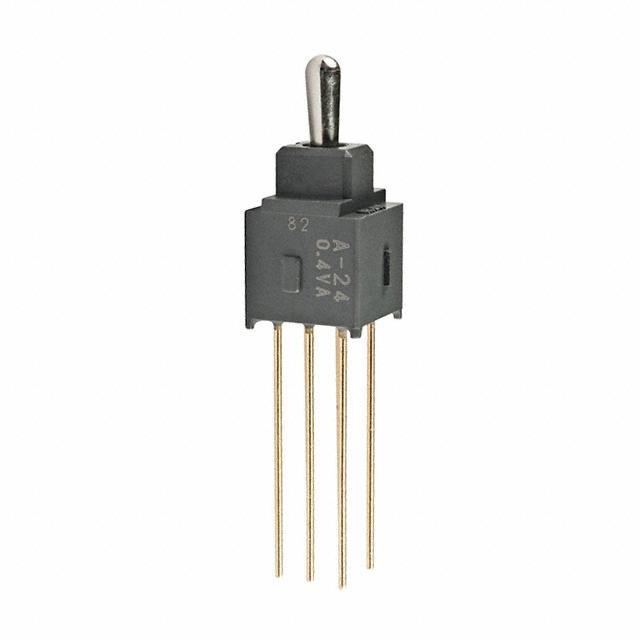

A24JW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A24JW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A24JW
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 16502 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.972

Product parameter
Data sheet

Product parameter

Part Number	A24JW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16502 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Wire Wrap
Switch Function	On-On-On	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Jumper needed to achieve triple throw
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch SP3T Through Hole
Current Rating	0.4VA (AC/DC)	Circuit	SP3T
Bushing Thread	Unthreaded, Square	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	6.30mm
