Home > Products > Switches > Toggle Switches > A18JP-JA

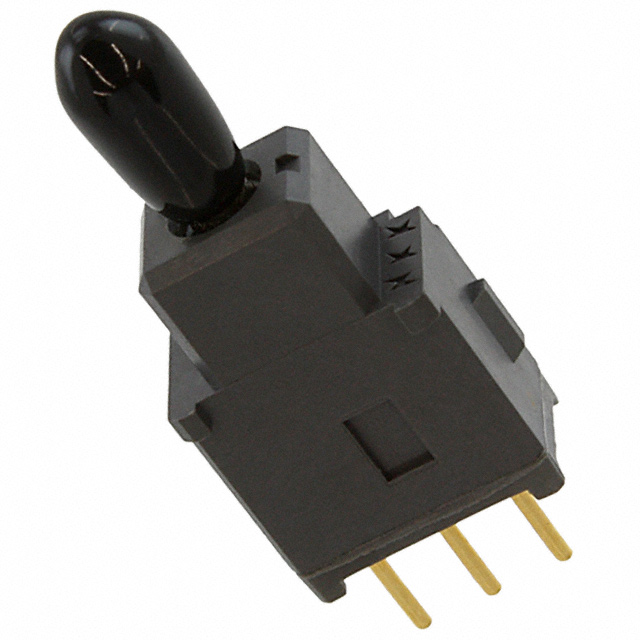

A18JP-JA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A18JP-JA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A18JP-JA
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 34289 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.649	$1.569	$1.53	$1.491
	$1.452	$1.334	$1.177	$1.059

Product parameter
Data sheet

Product parameter

Part Number	A18JP-JA	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34289 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	Mom-Off-Mom	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2716 A18JP-JA-ND A18JPJA	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Black Cap	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round with Cap	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
