A15AP

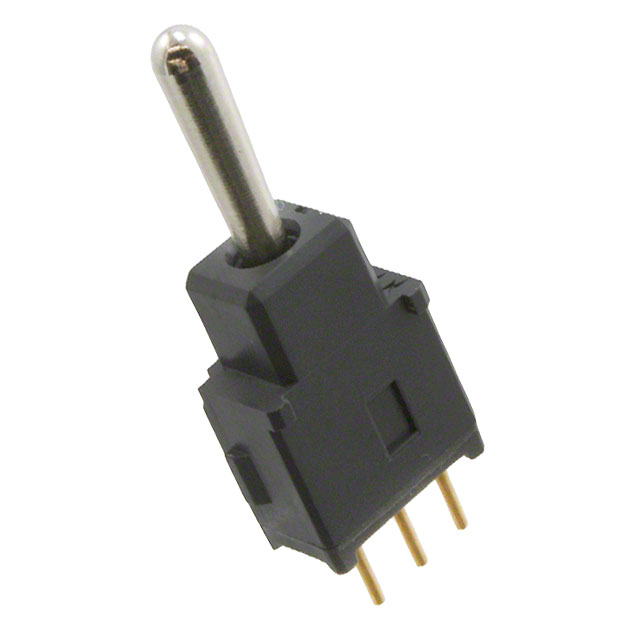

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A15AP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A15AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A15AP |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE SPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.566 | $1.50 | $1.435 | $1.37 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.239 | $1.142 | $1.044 | $0.913 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A15AP | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42868 pcs | Data sheet | A Series Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | A |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | 360-3763 A15AP-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Process Sealed | Electrical Life | 50,000 Cycles |
| Detailed Description | Toggle Switch SPDT Through Hole | Current Rating | 0.4VA (AC/DC) |
| Circuit | SPDT | Bushing Thread | Unthreaded, Square |
| Actuator Type | Standard Round | Actuator Material | Brass, Nickel Plated |
| Actuator Length | 10.00mm |
