Home > Products > Switches > Toggle Switches > A12HB

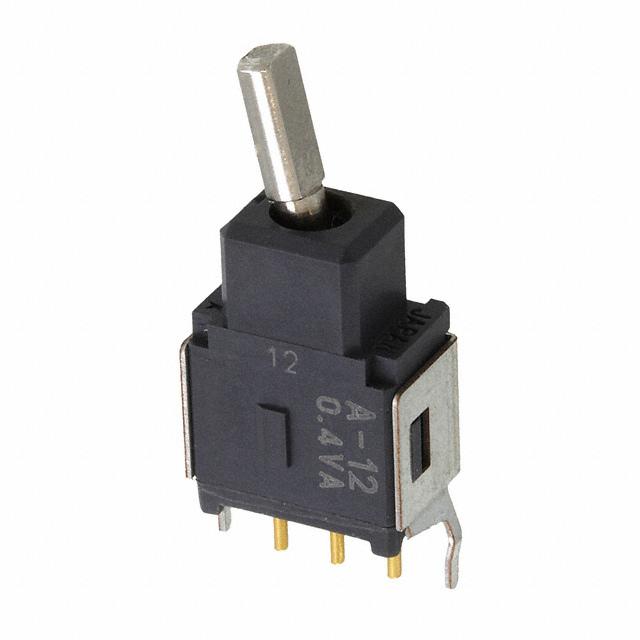

A12HB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A12HB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A12HB
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 37523 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.627	$1.551	$1.512	$1.474
	$1.435	$1.318	$1.163	$1.047

Product parameter
Data sheet

Product parameter

Part Number	A12HB	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37523 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3008 A12HB-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded, Square
Actuator Type	Flatted	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
