Home > Products > Switches > Toggle Switches > A12AH-GB

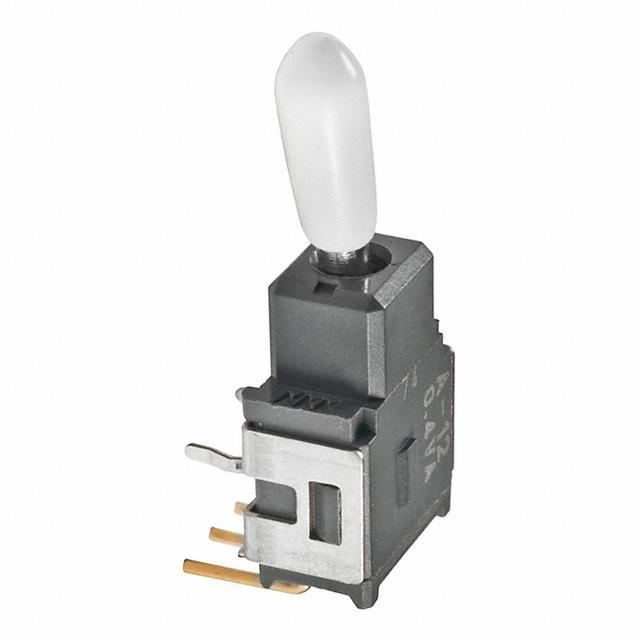

A12AH-GB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A12AH-GB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A12AH-GB
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 34551 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.609	$1.534	$1.496	$1.457
	$1.419	$1.304	$1.15	$1.035

Product parameter
Data sheet

Product parameter

Part Number	A12AH-GB	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34551 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	A12AH-GB-RO A12AH-GB-RO-ND A12AHGB	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	White Cap	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round with Cap	Actuator Material	Brass, Nickel Plated
Actuator Length	10.00mm
