Home > Products > Switches > Toggle Switches > A11HH

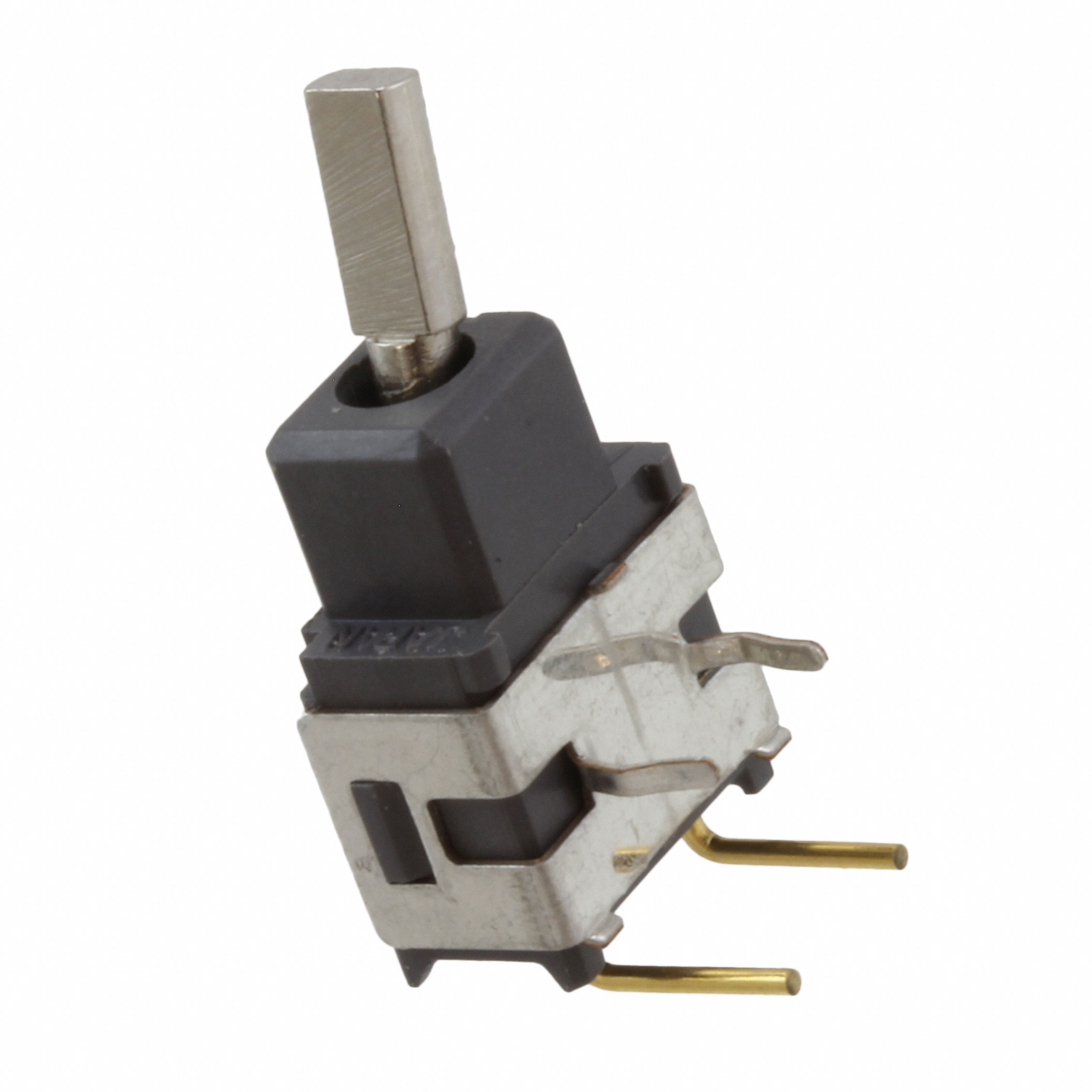

A11HH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A11HH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A11HH
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 28614 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.698	$1.617	$1.576	$1.536
	$1.496	$1.374	$1.213	$1.091

Product parameter
Data sheet

Product parameter

Part Number	A11HH	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28614 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch SPST Through Hole, Right Angle
Current Rating	0.4VA (AC/DC)	Circuit	SPST
Bushing Thread	Unthreaded, Square	Actuator Type	Flatted
Actuator Material	Brass, Nickel Plated	Actuator Length	6.30mm
