Home > Products > Switches > Toggle Switches > A11AH

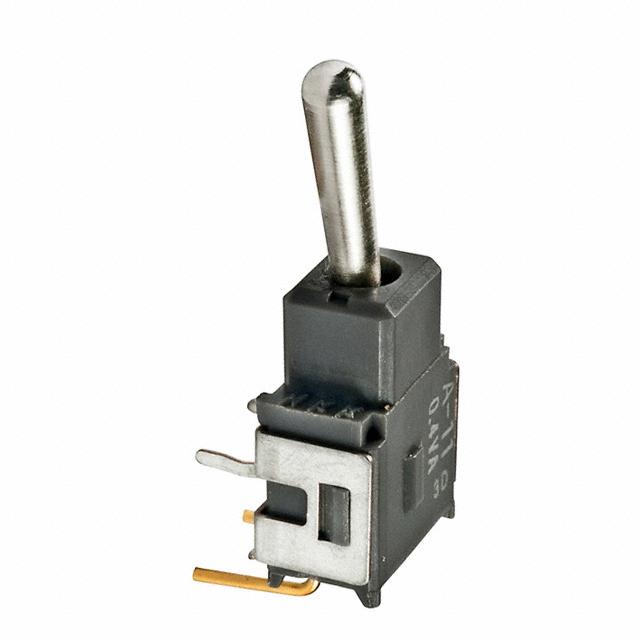

A11AH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A11AH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A11AH
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 30709 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.716	$1.646	$1.575	$1.503
	$1.36	$1.253	$1.145	$1.002

Product parameter
Data sheet

Product parameter

Part Number	A11AH	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30709 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2743 A11AH-ND A11AH-RO A11AH-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPST Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	SPST	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	10.00mm
