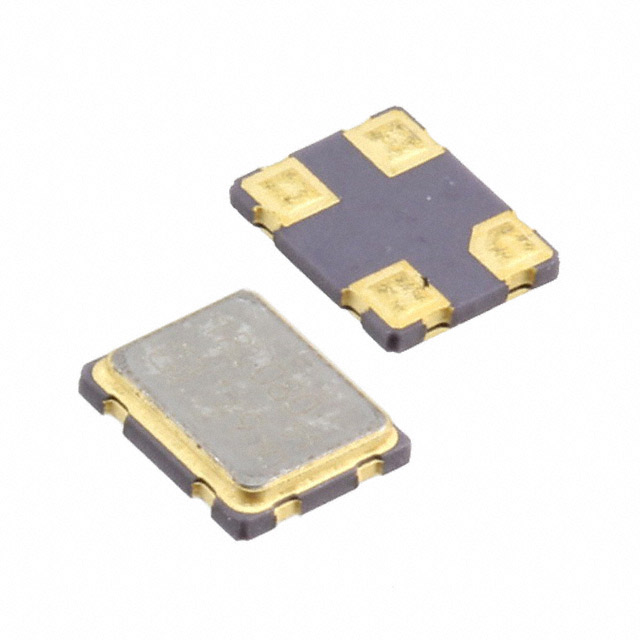

NX3225SC-30.320M-EXS00A-CS03981
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX3225SC-30.320M-EXS00A-CS03981 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX3225SC-30.320M-EXS00A-CS03981 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX3225SC-30.320M-EXS00A-CS03981 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 30.3200MHZ 6PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.159 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX3225SC-30.320M-EXS00A-CS03981 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 30.3200MHZ 6PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140871 pcs | Data sheet | NX3225SC-30.320M-EXS00A-CS03981 Spec |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Series | NX3225SC |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 644-1281-2 |
| Operating Temperature | -40°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 6pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.028" (0.70mm) |
| Frequency Tolerance | ±10ppm | Frequency Stability | ±25ppm |
| Frequency | 30.32MHz | ESR (Equivalent Series Resistance) | 100 Ohms |
| Detailed Description | 30.32MHz ±10ppm Crystal 6pF 100 Ohms 4-SMD, No Lead |
