NX3215SA-32.768K-STD-MUS-2

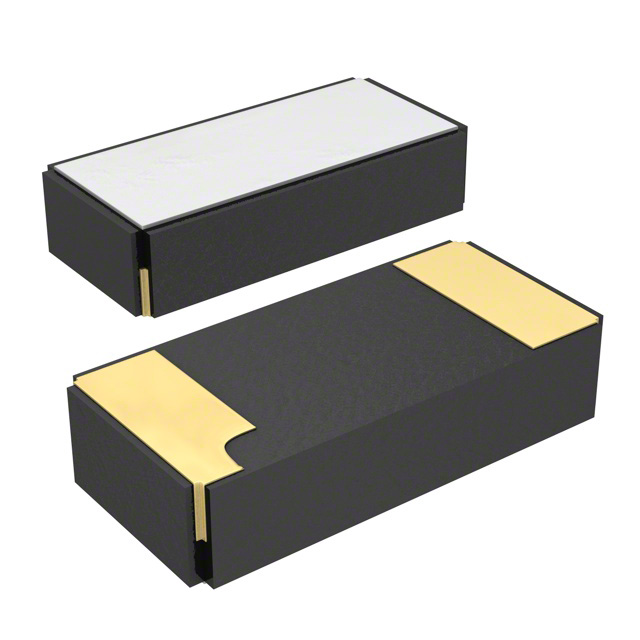

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX3215SA-32.768K-STD-MUS-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX3215SA-32.768K-STD-MUS-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX3215SA-32.768K-STD-MUS-2 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 32.7680KHZ 12.5PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.129 | $0.124 | $0.12 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX3215SA-32.768K-STD-MUS-2 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 32.7680KHZ 12.5PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 164456 pcs | Data sheet | NX3215SA Series |
| Category | Crystals, Oscillators, Resonators | Type | kHz Crystal (Tuning Fork) |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | Series | NX3215SA |
| Ratings | AEC-Q200 | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead | Other Names | 50157464 644-1159-2 NX3215SA32768KSTDMUS2 |
| Operating Temperature | -40°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 12.5pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.035" (0.90mm) |
| Frequency Tolerance | ±20ppm | Frequency Stability | - |
| Frequency | 32.768kHz | ESR (Equivalent Series Resistance) | 70 kOhms |
| Detailed Description | 32.768kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead |
