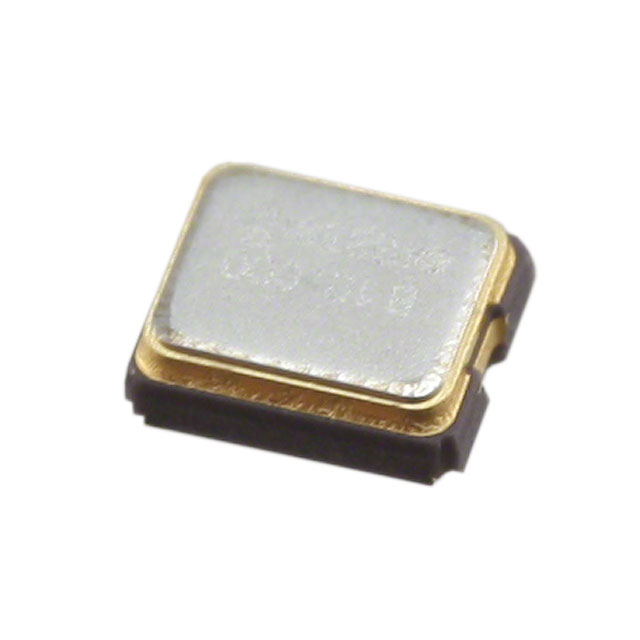

NT2520SA-26.000000MHZ-A1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NT2520SA-26.000000MHZ-A1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NT2520SA-26.000000MHZ-A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NT2520SA-26.000000MHZ-A1 |
|---|---|
| Manufacturer | NDK |
| Description | OSC TCXO 26.000MHZ SINE WAVE SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.88 | $0.858 | $0.817 | $0.715 | $0.695 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NT2520SA-26.000000MHZ-A1 | Manufacturer | NDK |
|---|---|---|---|
| Description | OSC TCXO 26.000MHZ SINE WAVE SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53596 pcs | Data sheet | NT2520SA DJA3001A |
| Category | Crystals, Oscillators, Resonators | Voltage - Supply | 2.4V |
| Type | TCXO | Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Series | NT2520SA | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | 4-SMD, No Lead |
| Output | Clipped Sine Wave | Other Names | 644-1113-1 |
| Operating Temperature | -30°C ~ 75°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.032" (0.80mm) |
| Function | - | Frequency Stability | ±2.5ppm |
| Frequency | 26MHz | Detailed Description | 26MHz TCXO Clipped Sine Wave Oscillator 2.4V 4-SMD, No Lead |
| Current - Supply (Max) | 1.1mA | Current - Supply (Disable) (Max) | - |
| Base Resonator | Crystal |
