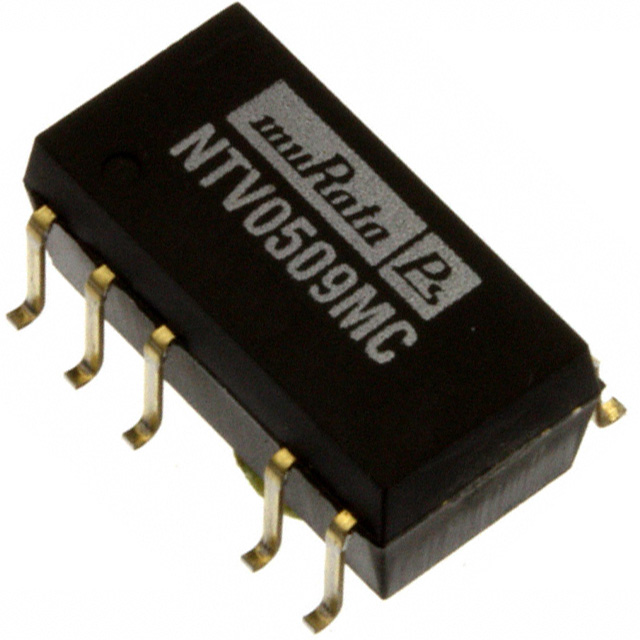

NTV0509MC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTV0509MC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTV0509MC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTV0509MC |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | DC DC CONVERTER +/-9V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $3.885 | $3.867 | $3.839 | $3.80 | $3.705 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.517 | $3.29 | $3.067 | $3.052 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTV0509MC | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | DC DC CONVERTER +/-9V 1W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11462 pcs | Data sheet | NTV Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -9V | Voltage - Output 1 | 9V |
| Voltage - Isolation | 3kV | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V | Type | Isolated Module |
| Size / Dimension | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | Series | NTV |
| Power (Watts) | 1W | Packaging | Tube |
| Package / Case | 22-SMD Module, 10 Leads | Other Names | 811-1695-5 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | SCP | Efficiency | 77% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 9V -9V 55mA, 55mA 4.5V - 5.5V Input | Current - Output (Max) | 55mA, 55mA |
| Applications | ITE (Commercial) |
