Home > Products > Power Supplies - Board Mount > DC DC Converters > NMXD1215SOC

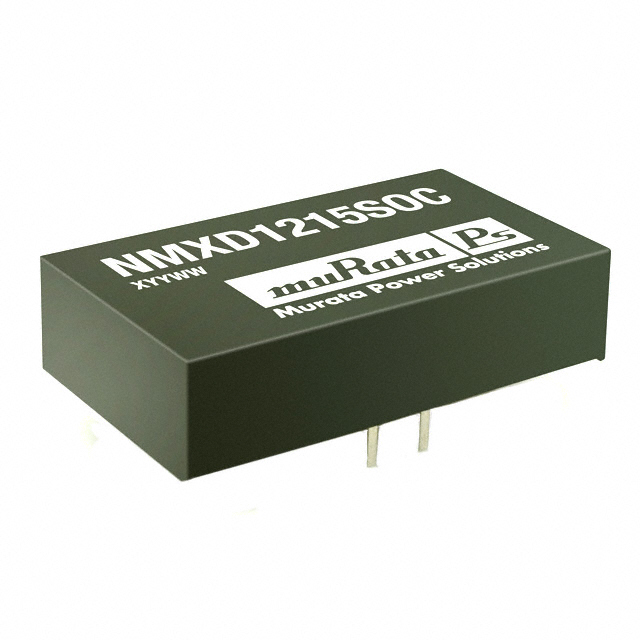

NMXD1215SOC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NMXD1215SOC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NMXD1215SOC
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-15V 5W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2482 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.257

Product parameter
Data sheet

Product parameter

Part Number	NMXD1215SOC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-15V 5W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2482 pcs	Data sheet	NMXS0 Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-15V	Voltage - Output 1	15V
Voltage - Isolation	1kV	Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V	Type	Isolated Module
Size / Dimension	1.59" L x 0.93" W x 0.39" H (40.4mm x 23.6mm x 9.9mm)	Series	NMXSO
Power (Watts)	5W	Packaging	Tube
Package / Case	5-DIP Module	Other Names	811-1616-5
Operating Temperature	0°C ~ 70°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Efficiency	65%	Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 10.8V - 13.2V Input
Current - Output (Max)	200mA, 200mA	Applications	ITE (Commercial)
