Home > Products > Power Supplies - Board Mount > DC DC Converters > NMH0505DC

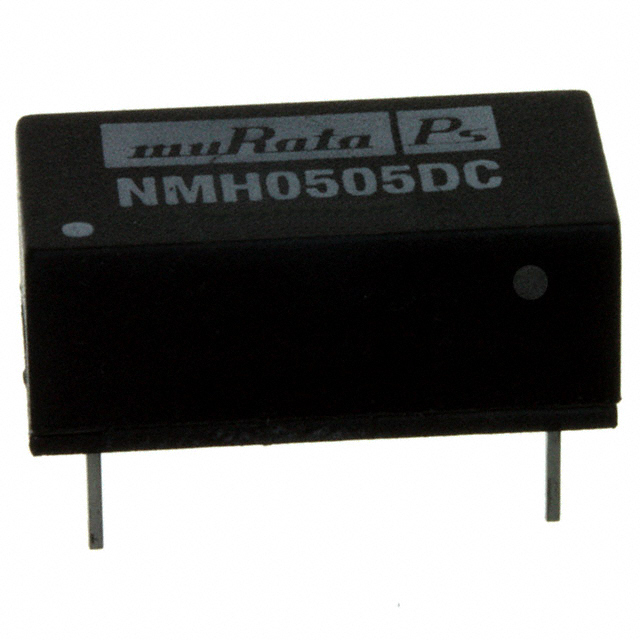

NMH0505DC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NMH0505DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NMH0505DC
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-5V 2W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 9804 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs	50 pcs
	$4.859	$4.833	$4.80	$4.748	$4.63
	$4.398	$4.115	$3.839	$3.818

Product parameter
Data sheet

Product parameter

Part Number	NMH0505DC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-5V 2W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9804 pcs	Data sheet	NMH Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-5V	Voltage - Output 1	5V
Voltage - Isolation	1kV	Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V	Type	Isolated Module
Size / Dimension	0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)	Series	NMH
Power (Watts)	2W	Packaging	Tube
Package / Case	14-DIP Module (300 mil, 6 Leads)	Other Names	811-1504-5
Operating Temperature	-40°C ~ 85°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Efficiency	80%
Detailed Description	Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 5.5V Input	Current - Output (Max)	200mA, 200mA
Applications	ITE (Commercial)
