Home > Products > Power Supplies - Board Mount > DC DC Converters > NMA2415DC

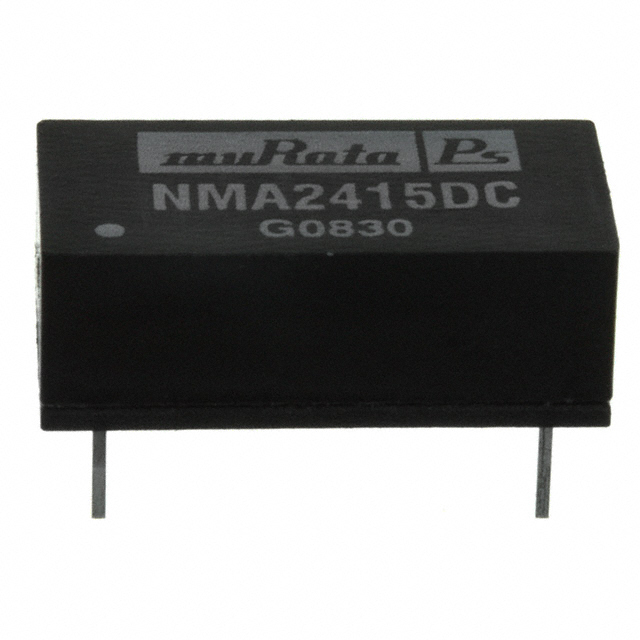

NMA2415DC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NMA2415DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NMA2415DC
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-15V 1W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5989 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NMA2415DC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-15V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5989 pcs	Data sheet	NMA 24V/48V Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-15V	Voltage - Output 1	15V
Voltage - Isolation	1kV	Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V	Type	Isolated Module
Size / Dimension	0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)	Series	NMA
Power (Watts)	1W	Packaging	Tube
Package / Case	14-DIP Module, 6 Leads	Other Names	811-1469-5
Operating Temperature	-40°C ~ 85°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Efficiency	80%	Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 21.6V - 26.4V Input
Current - Output (Max)	33mA, 33mA	Applications	ITE (Commercial)
