Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH12030WAS

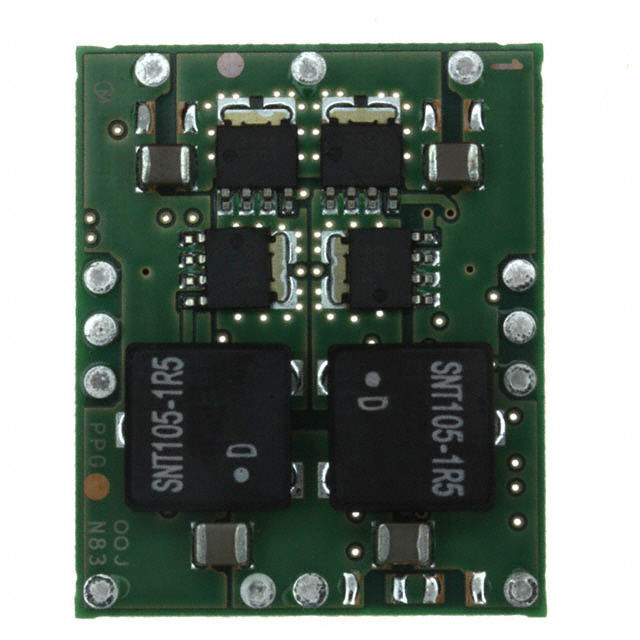

MPDTH12030WAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH12030WAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH12030WAS
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 1.2-5.5V 143W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5558 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	MPDTH12030WAS	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 1.2-5.5V 143W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5558 pcs	Data sheet
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	1.2 ~ 5.5 V
Voltage - Input (Min)	10.8V	Voltage - Input (Max)	13.2V
Type	Non-Isolated PoL Module	Size / Dimension	1.37" L x 1.12" W x 0.38" H (34.8mm x 28.5mm x 9.6mm)
Series	MPD	Power (Watts)	143W
Packaging	Tray	Package / Case	13-SMD Module
Other Names	490-5100 MPDTH12030WAS-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Efficiency	94.5%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5 V 26A 10.8V - 13.2V Input	Current - Output (Max)	26A
Applications	ITE (Commercial)
