Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH03010YAH

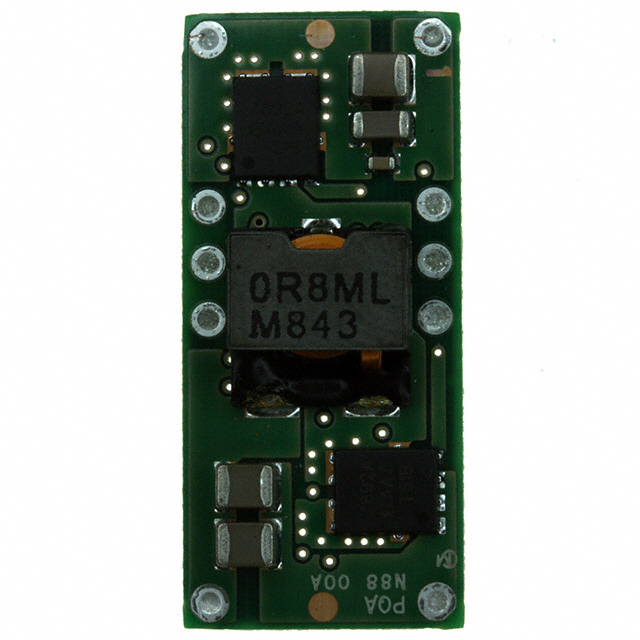

MPDTH03010YAH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH03010YAH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH03010YAH
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.55-1.8V 27W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5288 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MPDTH03010YAH	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.55-1.8V 27W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5288 pcs	Data sheet	MPDTH03010YAx
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	0.55 ~ 1.8 V
Voltage - Input (Min)	2.95V	Voltage - Input (Max)	3.65V
Type	Non-Isolated PoL Module	Size / Dimension	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm)
Series	MPD	Power (Watts)	27W
Packaging	Tray	Package / Case	10-DIP Module
Other Names	490-5061 MPDTH03010YAH-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Efficiency	88%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 0.55 ~ 1.8 V 15A 2.95V - 3.65V Input	Current - Output (Max)	15A
Applications	ITE (Commercial)
