Home > Products > Power Supplies - Board Mount > DC DC Converters > MPD6D209S

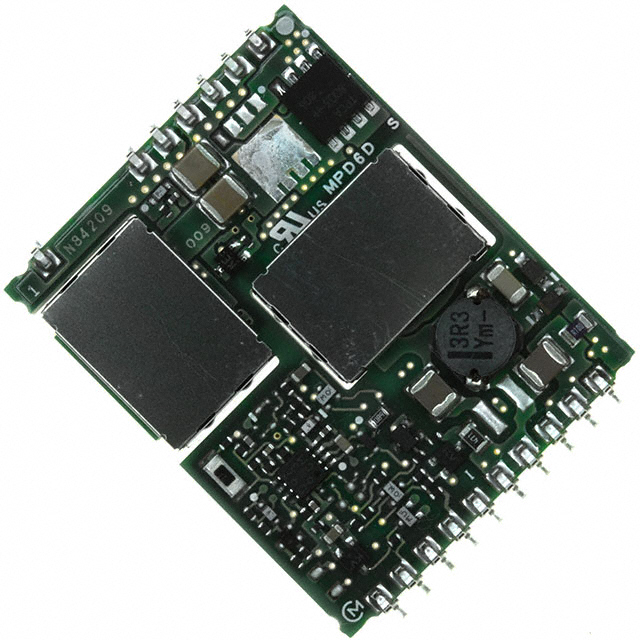

MPD6D209S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPD6D209S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPD6D209S
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 5.5V 33W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4662 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MPD6D209S	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 5.5V 33W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4662 pcs	Data sheet	MPD6D20xS
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	5.5V
Voltage - Isolation	1.5kV	Voltage - Input (Min)	18V
Voltage - Input (Max)	36V	Type	Isolated Module
Size / Dimension	1.47" L x 1.19" W x 0.31" H (37.3mm x 30.1mm x 8.0mm)	Series	MPD
Power (Watts)	33W	Packaging	Tray
Package / Case	20-SMD Module, 17 Leads	Other Names	490-5008
Operating Temperature	-40°C ~ 85°C	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Remote On/Off, OCP, OVP
Efficiency	91%	Detailed Description	Isolated Module DC DC Converter 1 Output 5.5V 6A 18V - 36V Input
Current - Output (Max)	6A	Control Features	Enable, Active Low
Applications	ITE (Commercial)
