Home > Products > Power Supplies - Board Mount > DC DC Converters > MEV1D1509DC

MEV1D1509DC

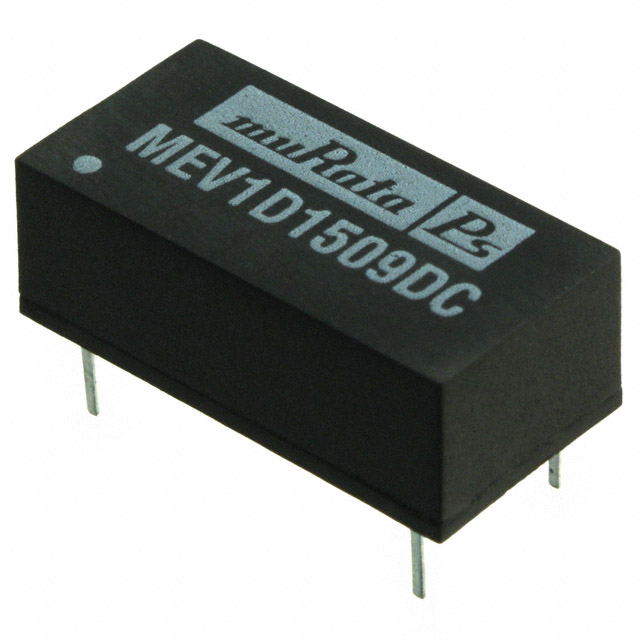

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEV1D1509DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MEV1D1509DC
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-9V 1W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15524 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$2.423

Product parameter
Data sheet

Product parameter

Part Number	MEV1D1509DC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-9V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15524 pcs	Data sheet	MEV1 Series Datasheet
Category	Power Supplies - Board Mount	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-9V
Voltage - Output 1	9V	Voltage - Isolation	3kV
Voltage - Input (Min)	13.5V	Voltage - Input (Max)	16.5V
Type	Isolated Module	Size / Dimension	0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm)
Series	MEV1	Power (Watts)	1W
Packaging	Tube	Package / Case	14-DIP Module, 6 Leads
Other Names	811-2293	Operating Temperature	-40°C ~ 85°C
Number of Outputs	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Efficiency	87%	Detailed Description	Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 13.5V - 16.5V Input
Current - Output (Max)	56mA, 56mA	Control Features	-
Applications	ITE (Commercial)
