Home > Products > Power Supplies - Board Mount > DC DC Converters > MEA1D2405DC

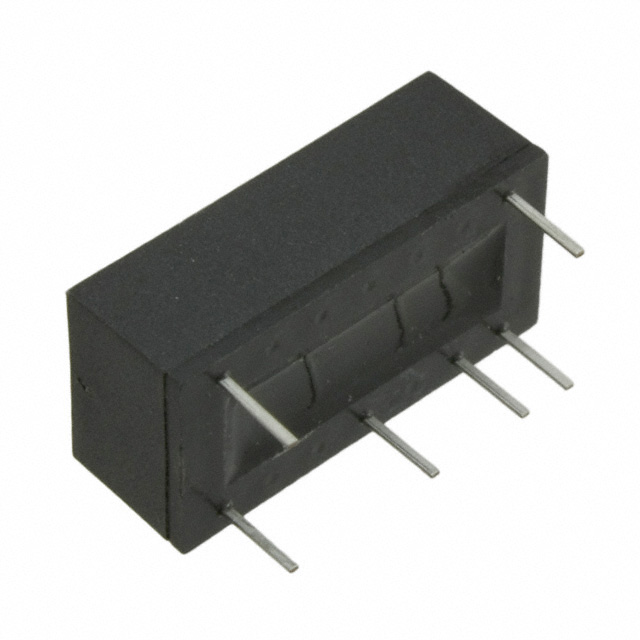

MEA1D2405DC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEA1D2405DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MEA1D2405DC
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-5V 1W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20150 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$1.873

Product parameter
Data sheet

Product parameter

Part Number	MEA1D2405DC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-5V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20150 pcs	Data sheet	MEA Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-5V	Voltage - Output 1	5V
Voltage - Isolation	1kV	Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V	Type	Isolated Module
Size / Dimension	0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm)	Series	MEA1
Power (Watts)	1W	Packaging	Tube
Package / Case	14-DIP Module, 6 Leads	Other Names	811-2221-5
Operating Temperature	-40°C ~ 85°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Efficiency	84.5%
Detailed Description	Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input	Current - Output (Max)	100mA, 100mA
Control Features	-	Applications	ITE (Commercial)
