Home > Products > Transformers > Pulse Transformers > 78602/8JC

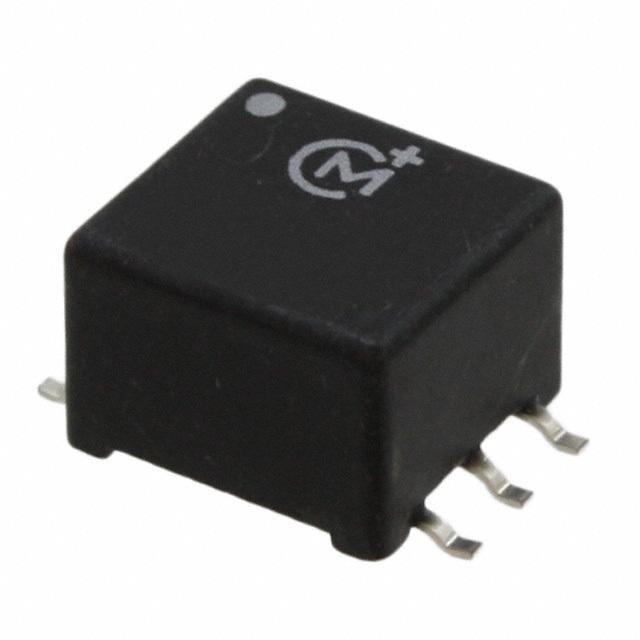

78602/8JC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78602/8JC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	78602/8JC
Manufacturer	Murata Power Solutions
Description	PULSE XFMR 1:1:1 970UH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 72867 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$0.577	$0.569	$0.562	$0.551
	$0.522	$0.485	$0.456	$0.45

Product parameter
Data sheet

Product parameter

Part Number	78602/8JC	Manufacturer	Murata Power Solutions
Description	PULSE XFMR 1:1:1 970UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72867 pcs	Data sheet	786J Series
Category	Transformers	Turns Ratio - Primary:Secondary	1:1:1
Transformer Type	General Purpose	Size / Dimension	0.375" L x 0.354" W (9.52mm x 9.00mm)
Series	786J	Packaging	Tube
Other Names	78602/8JC-ND 811-3718	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	970µH	Height - Seated (Max)	0.250" (6.35mm)
Energy Time (E.T.)	15V µS
