Home > Products > Transformers > Pulse Transformers > 78602/16C

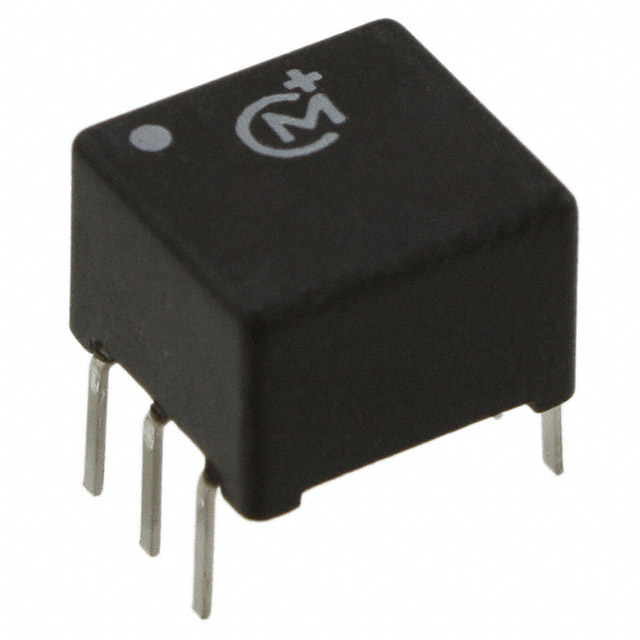

78602/16C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78602/16C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	78602/16C
Manufacturer	Murata Power Solutions
Description	TRANSFORMER 2:1 5000UH 28VUS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 65663 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$0.527

Product parameter
Data sheet

Product parameter

Part Number	78602/16C	Manufacturer	Murata Power Solutions
Description	TRANSFORMER 2:1 5000UH 28VUS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65663 pcs	Data sheet	786 Series Datasheet
Category	Transformers	Weight	0.039 oz (1.1g)
Turns Ratio - Primary:Secondary	1:1:1	Transformer Type	General Purpose
Size / Dimension	0.354" L x 0.375" W (9.00mm x 9.52mm)	Series	786
Packaging	Bulk	Other Names	7860216C 811-2652
Operating Temperature	0°C ~ 70°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	4mH
Height - Seated (Max)	0.250" (6.35mm)	Energy Time (E.T.)	28V µS
