76601/24HVC

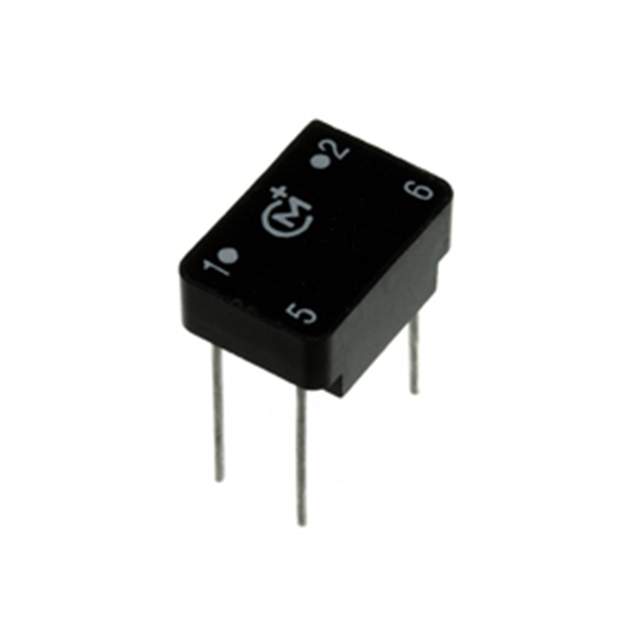

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76601/24HVC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76601/24HVC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76601/24HVC |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | PULSE XFMR 1:1 11.7MH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.793 | $0.769 | $0.669 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.648 | $0.63 | $0.625 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76601/24HVC | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | PULSE XFMR 1:1 11.7MH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59309 pcs | Data sheet | 766 Series |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | General Purpose | Size / Dimension | 0.500" L x 0.350" W (12.70mm x 8.89mm) |
| Series | 766 | Packaging | Tube |
| Other Names | 76601/24HVC-ND 811-3694 |
Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 11.7mH | Height - Seated (Max) | 0.250" (6.35mm) |
| Energy Time (E.T.) | 50.5V µS |
