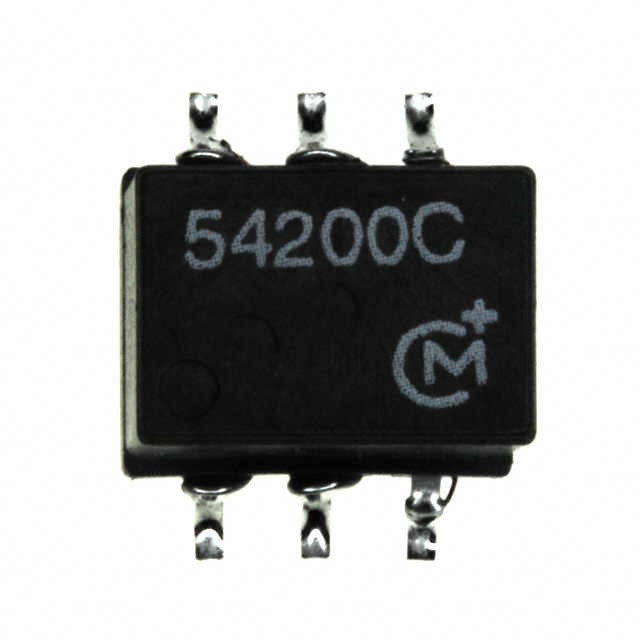

54200C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54200C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54200C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54200C |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | CURR SENSE XFMR 1:1:200 15A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 450 pcs | ||||
|---|---|---|---|---|---|
| $0.626 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54200C | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:1:200 15A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53633 pcs | Data sheet | 5400 Series |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:1:200 |
| Termination Style | Gull Wing | Size / Dimension | 0.354" L x 0.425" W (9.00mm x 10.80mm) |
| Series | 5400 | Ratings | - |
| Packaging | Tape & Reel (TR) | Other Names | 811-1199-2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 60mH | Height - Seated (Max) | 0.323" (8.20mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 1:1:200 Current Sense Transformer 50kHz ~ 500kHz 7 mOhm Primary, 6.6 Ohm Secondary 60mH Surface Mount | DC Resistance (DCR) | 7 mOhm Primary, 6.6 Ohm Secondary |
| Current Ratio | - |
