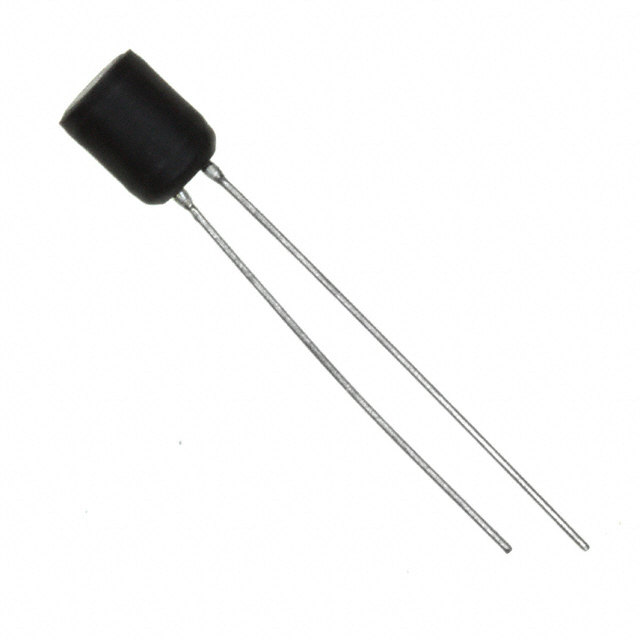

22R685C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22R685C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22R685C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22R685C |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | FIXED IND 6.8MH 72MA 22 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.209 | $0.206 | $0.199 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.192 | $0.177 | $0.165 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22R685C | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | FIXED IND 6.8MH 72MA 22 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122027 pcs | Data sheet | 2200R Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) | Shielding | Unshielded |
| Series | 2200R | Ratings | - |
| Q @ Freq | 145 @ 150kHz | Packaging | Bulk |
| Package / Case | Radial | Other Names | 811-1287 |
| Operating Temperature | -25°C ~ 70°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 6.8mH |
| Height - Seated (Max) | 0.413" (10.50mm) | Frequency - Self Resonant | 850kHz |
| Detailed Description | 6.8mH Unshielded Wirewound Inductor 72mA 22 Ohm Max Radial | DC Resistance (DCR) | 22 Ohm Max |
| Current Rating | 72mA | Current - Saturation | - |
