15223C

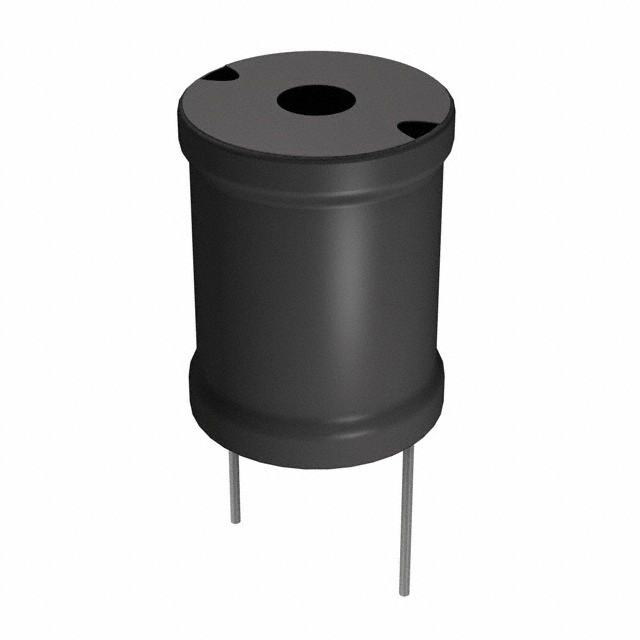

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15223C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15223C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15223C |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | FIXED IND 22UH 6.8A 18.8 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $0.593 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15223C | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | FIXED IND 22UH 6.8A 18.8 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64443 pcs | Data sheet | 1500 Series DatasheetPower Magnetics Selection Guide |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.661" Dia (16.80mm) | Shielding | Unshielded |
| Series | 1500 | Ratings | - |
| Q @ Freq | 102 @ 1MHz | Packaging | Tray |
| Package / Case | Radial, Vertical Cylinder | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 10kHz |
| Inductance | 22µH | Height - Seated (Max) | 0.839" (21.30mm) |
| Frequency - Self Resonant | 11MHz | Detailed Description | 22µH Unshielded Wirewound Inductor 6.8A 18.8 mOhm Max Radial, Vertical Cylinder |
| DC Resistance (DCR) | 18.8 mOhm Max | Current Rating | 6.8A |
| Current - Saturation | - |
