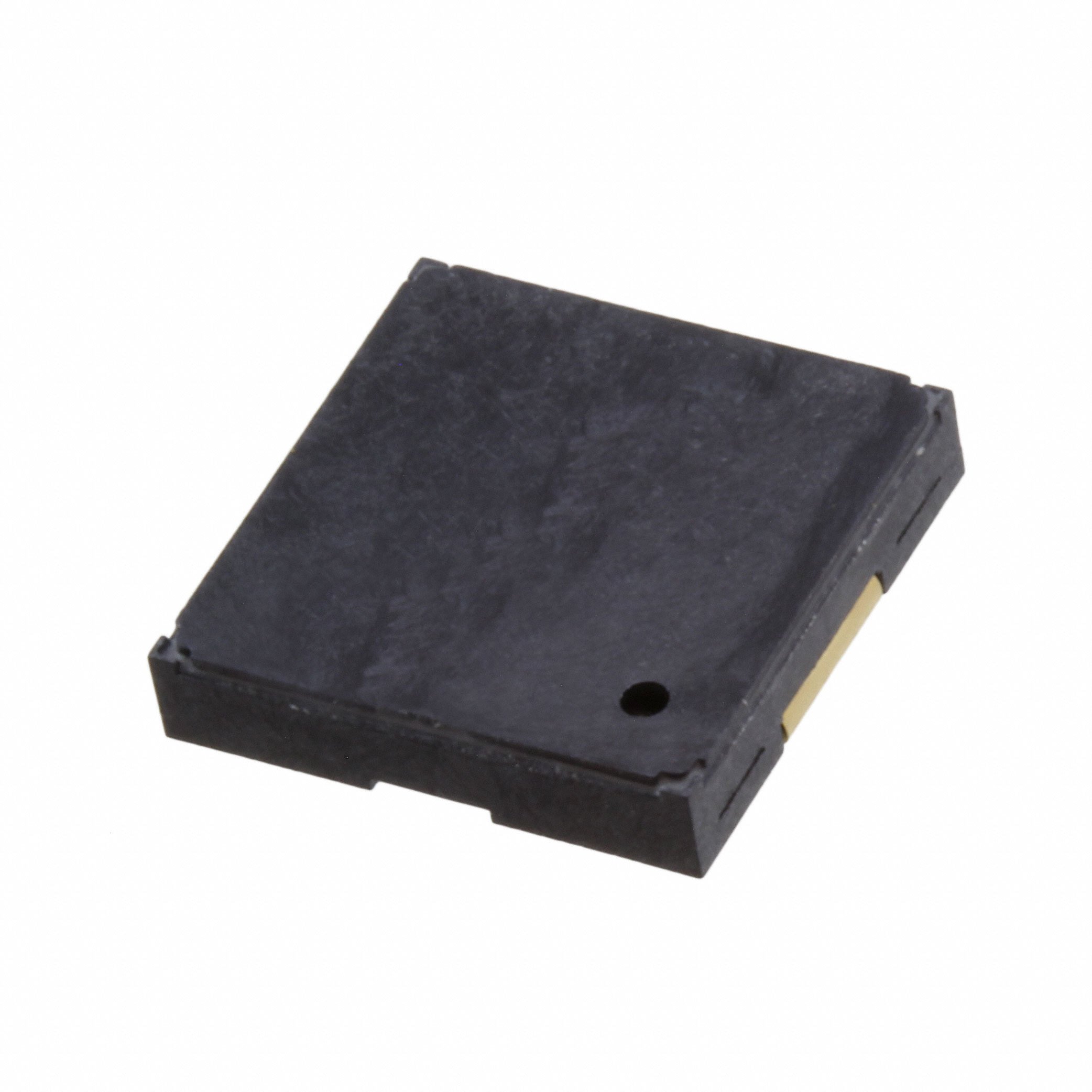

PKMCS0909E4000-R1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PKMCS0909E4000-R1 with confidence from Components-World.HK, 1 Year Warranty
Dowload PKMCS0909E4000-R1 Details in PDFSee Product Specifications for product details.
Buy PKMCS0909E4000-R1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PKMCS0909E4000-R1 |
|---|---|
| Manufacturer | Murata Electronics |
| Description | AUDIO PIEZO TRANSDUCER 12.5V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.552 | $0.438 | $0.40 | $0.373 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.349 | $0.318 | $0.296 | $0.278 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PKMCS0909E4000-R1 | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | AUDIO PIEZO TRANSDUCER 12.5V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77024 pcs | Data sheet | PKMCS0909E4000-R1 DatasheetSMD Piezoelectric Sounder Part Numbering |
| Category | Audio Products | Voltage Range | 12.5V (Max) |
| Voltage - Rated | 1.5V | Termination | Solder Pads |
| Technology | Piezo | Sound Pressure Level (SPL) | 65dB @ 1.5V, 10cm |
| Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) | Series | PK |
| Ratings | - | Port Location | Side |
| Packaging | Original-Reel® | Other Names | 490-9647-6 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Single Tone |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.075" (1.90mm) |
| Frequency | 4kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Piezo 1.5V 4kHz 65dB @ 1.5V, 10cm Surface Mount Solder Pads |
| Current - Supply | - | Approvals | - |
