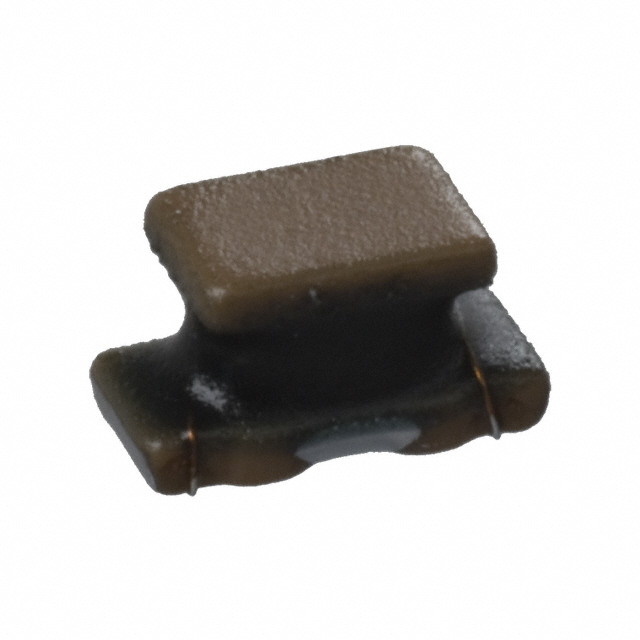

NFW31SP206X1E4L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NFW31SP206X1E4L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NFW31SP206X1E4L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NFW31SP206X1E4L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FILTER LC(PI) 20MHZ SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.289 | $0.278 | $0.269 | $0.219 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.197 | $0.179 | $0.17 | $0.152 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NFW31SP206X1E4L | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FILTER LC(PI) 20MHZ SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144973 pcs | Data sheet | NF(W,L,E) Part NumberingEMI Suppression Filters CatalogNFW31SPyyyX1E4L Spec |
| Category | Filters | Voltage - Rated | 25V |
| Values | - | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Series | EMIFIL®, NFW31 | Resistance - Channel (Ohms) | - |
| Packaging | Cut Tape (CT) | Package / Case | 1206 (3216 Metric), 3 PC Pad |
| Other Names | 490-6989-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.079" (2.00mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel 200mA 1206 (3216 Metric), 3 PC Pad | Current | 200mA |
| Center / Cutoff Frequency | 20MHz (Cutoff) | Attenuation Value | 25dB @ 100MHz ~ 200MHz |
| Applications | General Purpose |
