Home > Products > Filters > EMI/RFI Filters (LC, RC Networks) > NFA31GD1001014D

NFA31GD1001014D

NFA31GD1001014D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NFA31GD1001014D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NFA31GD1001014D
Manufacturer	Murata Electronics
Description	FILTER RC 100 OHM/10PF SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5290 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NFA31GD1001014D	Manufacturer	Murata Electronics
Description	FILTER RC 100 OHM/10PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5290 pcs	Data sheet	NFA31G Series
Category	Filters	Voltage - Rated	6V
Values	R = 100 Ohms, C = 10pF	Type	Low Pass
Technology	RC	Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Series	EMIFIL®, NFA31	Resistance - Channel (Ohms)	100
Packaging	Tape & Reel (TR)	Package / Case	1206 (3216 Metric), Array, 10 PC Pad
Other Names	490-11827-2 NFA31GD1001014D-ND	Operating Temperature	-40°C ~ 85°C
Number of Channels	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.039" (1.00mm)	Filter Order	1st
ESD Protection	No	Detailed Description	RC EMI Filter 1st Order Low Pass 4 Channel R = 100 Ohms, C = 10pF 15mA 1206 (3216 Metric), Array, 10 PC Pad
Current	15mA	Center / Cutoff Frequency	-
Attenuation Value	-	Applications	General Purpose

Related products
Related news

Related products

NFA31CC220S1E4D Image

Part#:~~NFA31CC220S1E4D~~
Manufacturers:~~Murata Electronics~~
Description:~~CAP ARRAY 22PF 25V 1206~~
In Stock:~~5483~~

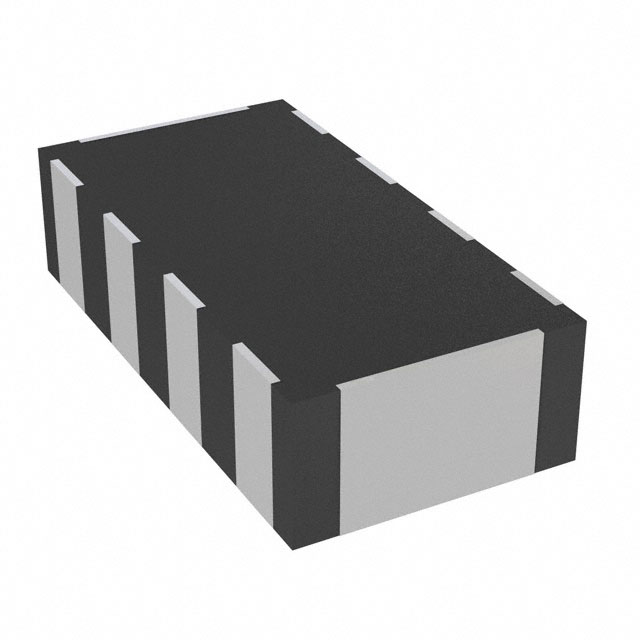

NFA31GD1006R84D Image
