LQM18JNR12J00D

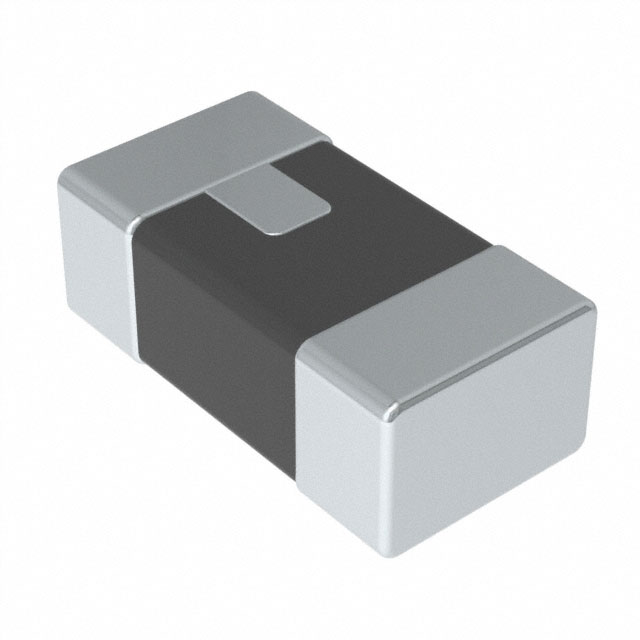

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LQM18JNR12J00D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LQM18JNR12J00D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LQM18JNR12J00D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 120NH 610MA 587.5 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | 100000 pcs |
|---|---|---|---|---|---|
| $0.025 | $0.024 | $0.022 | $0.022 | $0.02 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | LQM18JNR12J00D | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 120NH 610MA 587.5 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1204853 pcs | Data sheet | LQ Part Numbering, GeneralLQM18JNyyyy00D Spec |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±5% | Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Shielding | Shielded |
| Series | LQM18 | Ratings | AEC-Q200 |
| Q @ Freq | 8 @ 25MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) | Other Names | 490-16574-2 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 25MHz | Inductance | 120nH |
| Height - Seated (Max) | 0.026" (0.65mm) | Frequency - Self Resonant | 150MHz |
| Features | - | Detailed Description | 120nH Shielded Multilayer Inductor 610mA 587.5 mOhm Max 0603 (1608 Metric) |
| DC Resistance (DCR) | 587.5 mOhm Max | Current Rating | 610mA |
| Current - Saturation | - |
