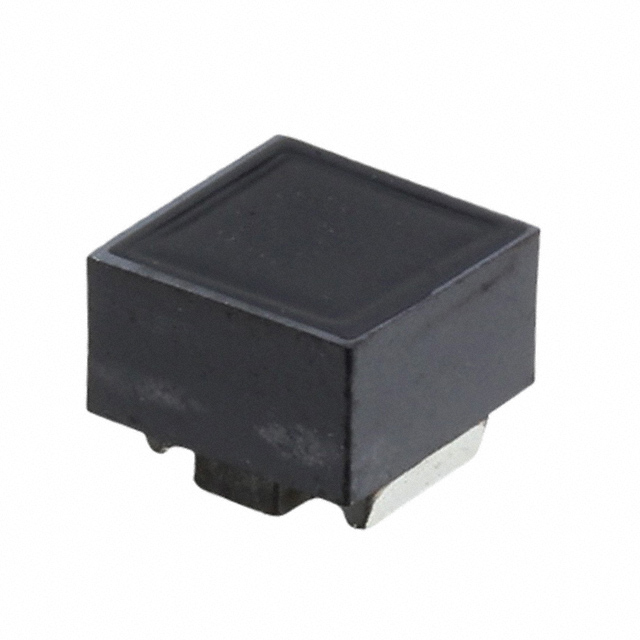

LQH66SN150M03L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LQH66SN150M03L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LQH66SN150M03L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LQH66SN150M03L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 15UH 1.3A 69 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 350 pcs | 700 pcs | 1050 pcs | 3500 pcs | 8750 pcs |
|---|---|---|---|---|---|
| $0.424 | $0.401 | $0.365 | $0.353 | $0.342 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | LQH66SN150M03L | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 15UH 1.3A 69 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57296 pcs | Data sheet | Chip Inductors CatalogStandard Land Pattern Dimensions |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Shielding | Shielded |
| Series | LQH66 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 490-11706-2 LQH66SN150M03L-ND |
| Operating Temperature | -40°C ~ 80°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 15µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | 17MHz |
| Detailed Description | 15µH Shielded Wirewound Inductor 1.3A 96.6 mOhm Max Nonstandard | DC Resistance (DCR) | 96.6 mOhm Max |
| Current Rating | 1.3A | Current - Saturation | - |
