LQH55DN1R5M03L

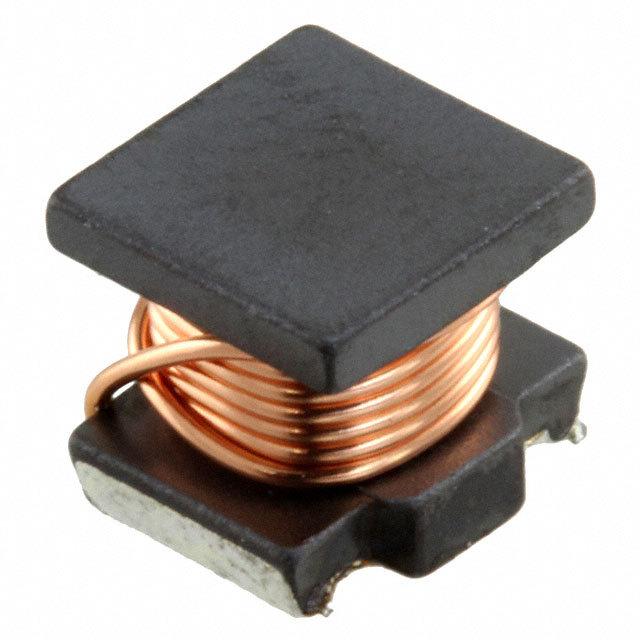

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LQH55DN1R5M03L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LQH55DN1R5M03L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LQH55DN1R5M03L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 1.5UH 3.7A 22 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.608 | $0.56 | $0.392 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LQH55DN1R5M03L | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 1.5UH 3.7A 22 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81468 pcs | Data sheet | LQH55DNyyyy03L Ref SpecChip Inductors CatalogStandard Land Pattern Dimensions |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | 2220 (5650 Metric) |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | Shielding | Unshielded |
| Series | LQH55 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | 2220 (5750 Metric) | Other Names | 490-11691-1 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 1.5µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | 110MHz |
| Detailed Description | 1.5µH Unshielded Wirewound Inductor 3.7A 30.8 mOhm Max 2220 (5750 Metric) | DC Resistance (DCR) | 30.8 mOhm Max |
| Current Rating | 3.7A | Current - Saturation | - |
