LQH43PN6R8M26L

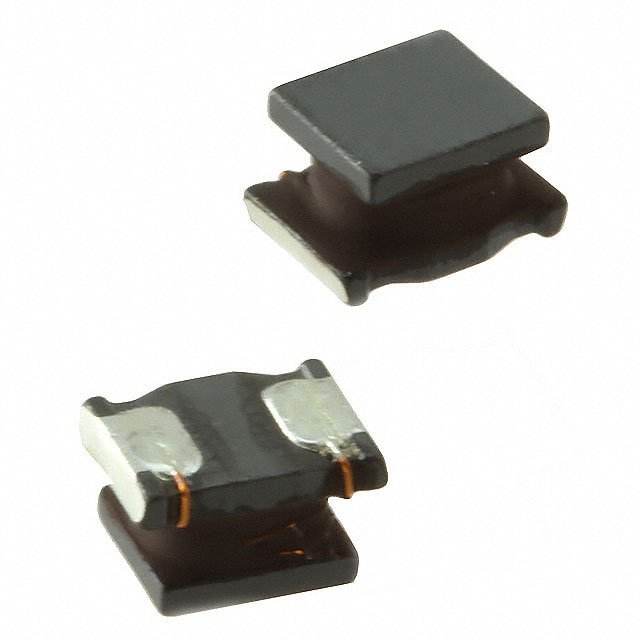

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LQH43PN6R8M26L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LQH43PN6R8M26L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LQH43PN6R8M26L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 6.8UH 1.4A 98 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.152 | $0.137 | $0.094 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LQH43PN6R8M26L | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 6.8UH 1.4A 98 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 242036 pcs | Data sheet | LQ Part Numbering GuideChip Inductors CatalogLQH43PNyyyy26L Ref Sheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Shielding | Shielded |
| Series | LQH43 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | 1812 (4532 Metric) | Other Names | 490-16859-1 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 6.8µH |
| Height - Seated (Max) | 0.110" (2.80mm) | Frequency - Self Resonant | 30MHz |
| Detailed Description | 6.8µH Shielded Wirewound Inductor 1.4A 117.6 mOhm Max 1812 (4532 Metric) | DC Resistance (DCR) | 117.6 mOhm Max |
| Current Rating | 1.4A | Current - Saturation | 1.2A |
