FDSD0420D-2R2M=P3

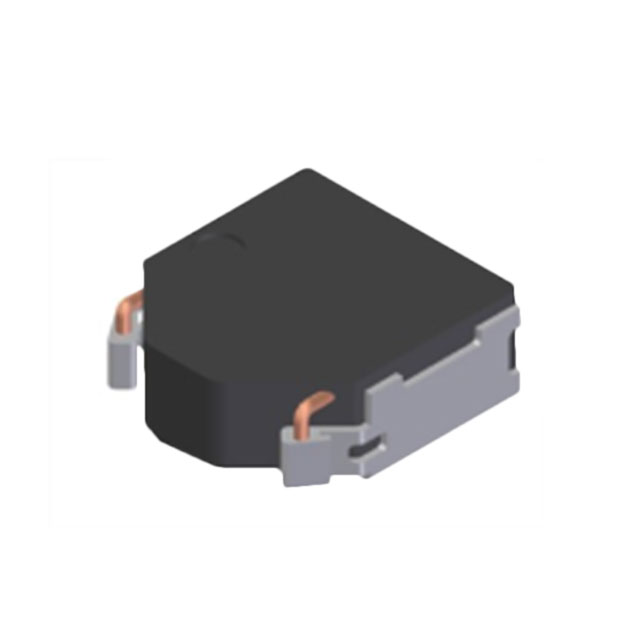

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDSD0420D-2R2M=P3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDSD0420D-2R2M=P3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDSD0420D-2R2M=P3 |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 2.2UH 3.6A 47 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.125 | $0.117 | $0.114 | $0.11 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDSD0420D-2R2M=P3 | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 2.2UH 3.6A 47 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185908 pcs | Data sheet | FDSD0420D Type |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Size / Dimension | 0.165" L x 0.165" W (4.20mm x 4.20mm) |
| Shielding | Shielded | Series | FDS0420 |
| Ratings | AEC-Q200 | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 490-13177-2 | Operating Temperature | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Metal | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 2.2µH | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 2.2µH Shielded Inductor 3.6A 47 mOhm Max Nonstandard |
| DC Resistance (DCR) | 47 mOhm Max | Current Rating | 3.6A |
| Current - Saturation | 5.5A |
