Home > Products > Capacitors > Ceramic Capacitors > DHS4E4F272MTXB

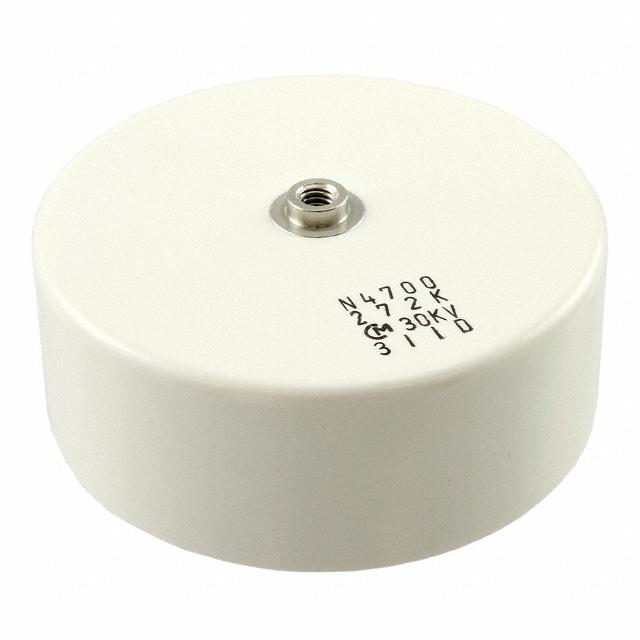

DHS4E4F272MTXB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DHS4E4F272MTXB with confidence from Components-World.HK, 1 Year Warranty

Dowload DHS4E4F272MTXB Details in PDF

Request a Quote

Part Number	DHS4E4F272MTXB
Manufacturer	Murata Electronics
Description	CAP CER 2700PF 30KV N4700 DISK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1353 pcs
Reference Price (In US Dollars)	2 pcs
Reference Price (In US Dollars)	$25.254

Product parameter
Data sheet

Product parameter

Part Number	DHS4E4F272MTXB	Manufacturer	Murata Electronics
Description	CAP CER 2700PF 30KV N4700 DISK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1353 pcs	Data sheet	High Volt Ceramic Caps Over 10kV Part Numbering
Category	Capacitors	Voltage - Rated	30000V (30kV)
Tolerance	±20%	Thickness (Max)	-
Temperature Coefficient	N4700	Size / Dimension	2.362" Dia (60.00mm)
Series	DHS	Ratings	-
Packaging	Bulk	Package / Case	Disk, Metal Fitting - Threaded
Other Names	Q3105431	Operating Temperature	20°C ~ 85°C
Mounting Type	Requires Holder	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Style	-	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.945" (24.00mm)
Features	High Voltage	Detailed Description	2700pF ±20% 30000V (30kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
Capacitance	2700pF	Applications	General Purpose
