Home > Products > Inductors, Coils, Chokes > Fixed Inductors > B1047AS-820M=P3

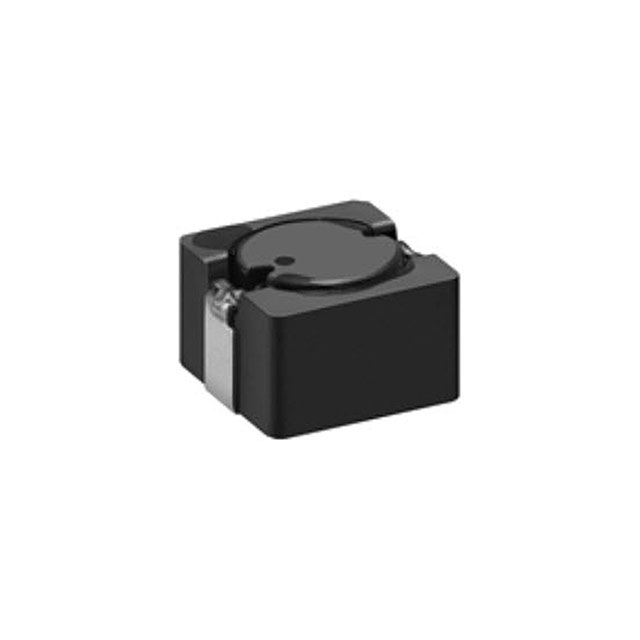

B1047AS-820M=P3

B1047AS-820M=P3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B1047AS-820M=P3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B1047AS-820M=P3
Manufacturer	Murata Electronics
Description	FIXED IND
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 235167 pcs
Reference Price (In US Dollars)	1000 pcs	3000 pcs	5000 pcs	10000 pcs	25000 pcs
Reference Price (In US Dollars)	$0.106	$0.099	$0.096	$0.093	$0.09

Product parameter
Data sheet

Product parameter

Part Number	B1047AS-820M=P3	Manufacturer	Murata Electronics
Description	FIXED IND	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	235167 pcs	Data sheet	DS75LC Type
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	2-SMD
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielding	Shielded
Series	-	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	490-14230-2
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	82µH
Height - Seated (Max)	0.197" (5.00mm)	Frequency - Self Resonant	-
Detailed Description	82µH Shielded Wirewound Inductor 940mA 320 mOhm Max Nonstandard	DC Resistance (DCR)	320 mOhm Max
Current Rating	940mA	Current - Saturation	1A
