1285AS-H-R56M=P2

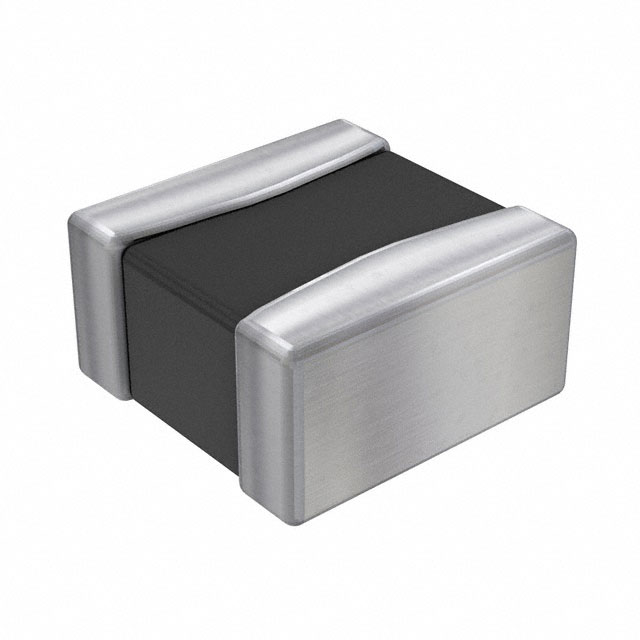

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1285AS-H-R56M=P2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1285AS-H-R56M=P2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1285AS-H-R56M=P2 |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 560NH 2.8A 59 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.053 | $0.049 | $0.048 | $0.046 | $0.045 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1285AS-H-R56M=P2 | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FIXED IND 560NH 2.8A 59 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 505029 pcs | Data sheet | DFE201610C |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Shielding | Shielded |
| Series | DFE201610C | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) | Other Names | 490-10601-2 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 560nH |
| Height - Seated (Max) | 0.039" (1.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 560nH Shielded Wirewound Inductor 2.8A 59 mOhm Max 0805 (2012 Metric) | DC Resistance (DCR) | 59 mOhm Max |
| Current Rating | 2.8A | Current - Saturation | - |
