9225-0-15-15-10-27-10-0

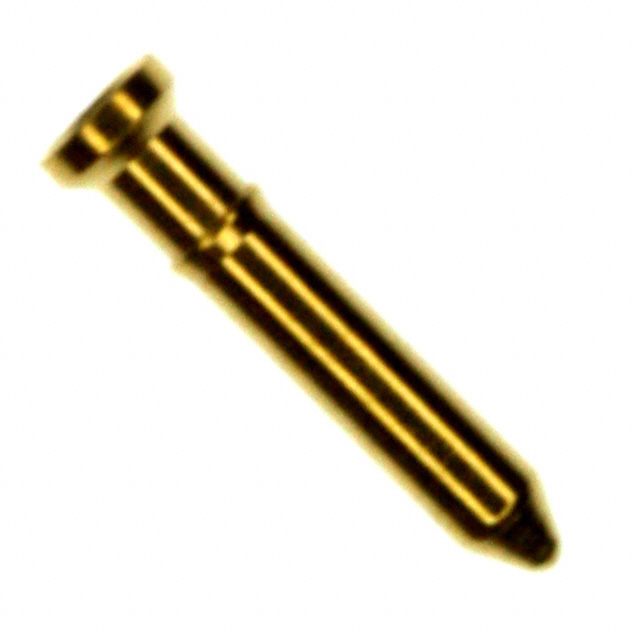

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9225-0-15-15-10-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9225-0-15-15-10-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9225-0-15-15-10-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .012-.017 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.114 | $0.108 | $0.093 | $0.079 | $0.076 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.068 | $0.065 | $0.054 | $0.05 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9225-0-15-15-10-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .012-.017 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 407618 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.155" (3.94mm) | Series | 9225 |
| Pin Hole Diameter | 0.028" (0.71mm) | Packaging | Bulk |
| Other Names | 9225-015151027100 9225-015151027100-ND 9225015151027100 ED1167 Q6418318 Q7845040 T1643844 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.039" (0.99mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.225" (5.72mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.055" (1.40mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.012" ~ 0.017" (0.30mm ~ 0.43mm) |
