9022-0-00-15-00-00-33-0

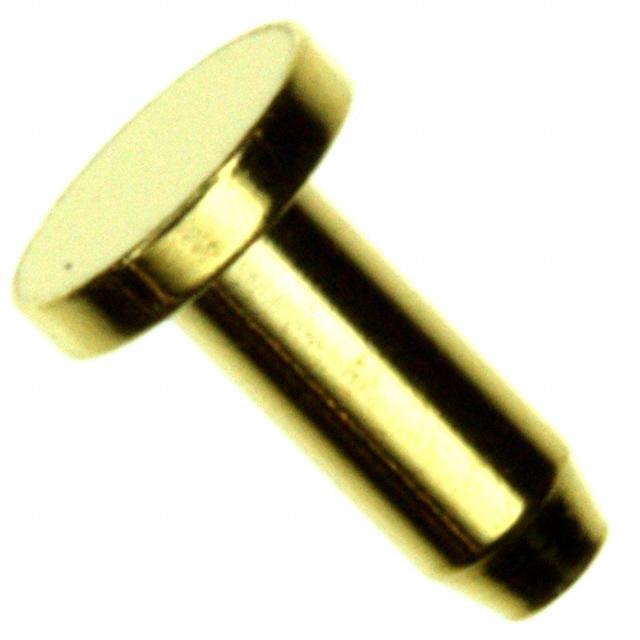

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9022-0-00-15-00-00-33-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9022-0-00-15-00-00-33-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9022-0-00-15-00-00-33-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.062DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.256 | $0.24 | $0.216 | $0.192 | $0.184 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.168 | $0.16 | $0.132 | $0.12 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9022-0-00-15-00-00-33-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.062DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 175402 pcs | Data sheet | Male PCB Pins (metric)Male PCB Pins (in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End, Nail Head |
| Series | 9022 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia | Packaging | Bulk |
| Other Names | 9.022E+15 9022000150000330 ED90411 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.066" (1.68mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.185" (4.70mm) | Length - Below Flange | - |
| Length - Above Flange | 0.160" (4.06mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.125" (3.18mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.062" (1.57mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
