9016-0-15-80-07-27-10-0

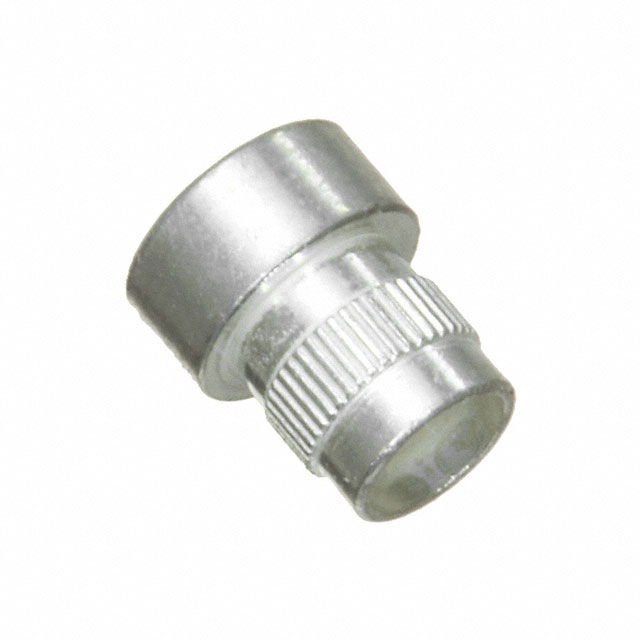

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9016-0-15-80-07-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9016-0-15-80-07-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9016-0-15-80-07-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.65 | $0.59 | $0.553 | $0.529 | $0.505 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.457 | $0.421 | $0.361 | $0.337 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9016-0-15-80-07-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 57146 pcs | Data sheet | Pin Receptacles (metric)Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.240" (6.10mm) | Series | 9016 |
| RoHS Status | RoHS Compliant | Pin Hole Diameter | 0.107" (2.72mm) |
| Packaging | Bulk | Other Names | 9016-0-15-80-07-27-10-0-ND ED11450 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.131" (3.33mm) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.240" (6.10mm) |
| Insertion Force | - | Flange Diameter | 0.172" (4.37mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) |
