9003-0-00-15-00-00-03-0

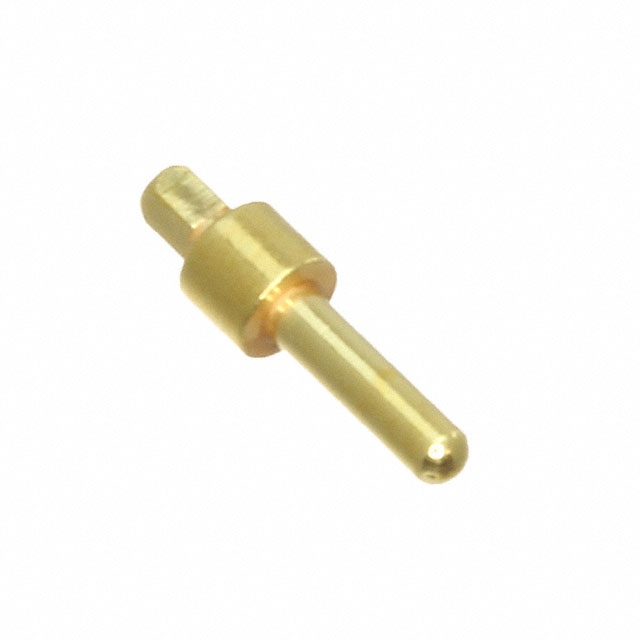

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9003-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9003-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9003-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | PRESS-FIT PCB PIN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.096 | $0.091 | $0.077 | $0.068 | $0.063 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.056 | $0.053 | $0.043 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9003-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | PRESS-FIT PCB PIN | Lead Free Status / RoHS Status | |
| Quantity Available | 527112 pcs | Data sheet | Male PCB Pins (in)Male PCB Pins (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 9003 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | ED10386 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.047" (1.19mm) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.280" (7.11mm) | Length - Below Flange | 0.060" (1.52mm) |
| Length - Above Flange | 0.160" (4.06mm) | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.078" (1.98mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
