8952-0-05-15-00-00-03-0

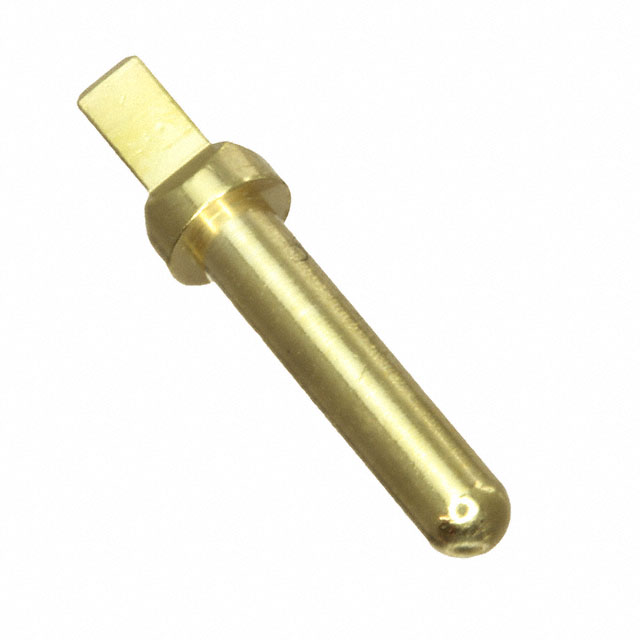

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8952-0-05-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8952-0-05-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8952-0-05-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.438 | $0.385 | $0.362 | $0.347 | $0.332 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.302 | $0.272 | $0.241 | $0.219 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8952-0-05-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 99651 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Square |
| Terminal Type | PC Pin | Terminal Style | Wire |
| Series | 8952 | RoHS Status | RoHS Compliant |
| Pin Size - Below Flange | 0.080" (2.03mm) Dia | Pin Size - Above Flange | 0.064" (1.63mm) Square |
| Packaging | Bulk | Other Names | 8952-0-05-15-00-00-03-0-ND ED11446 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.087" (2.21mm) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.560" (14.22mm) | Length - Below Flange | 0.380" (9.65mm) |
| Length - Above Flange | 0.120" (3.05mm) | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.064" (1.63mm) Square | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
