8806-0-18-15-47-27-40-0

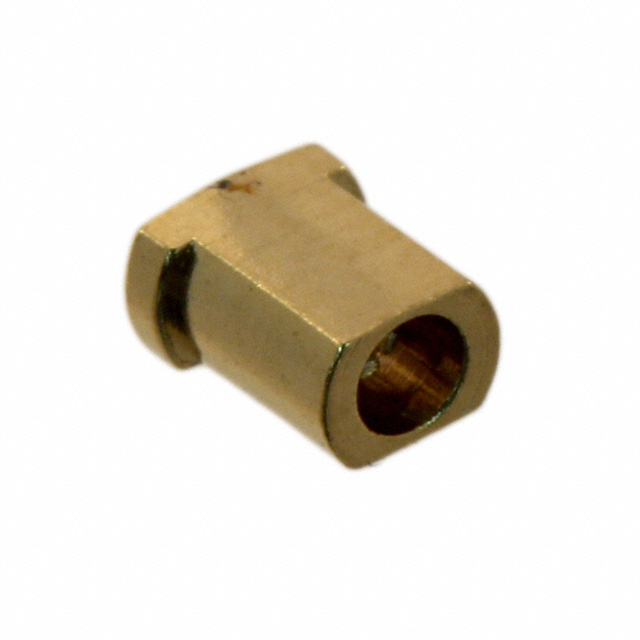

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8806-0-18-15-47-27-40-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8806-0-18-15-47-27-40-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8806-0-18-15-47-27-40-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .025-.037 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.461 | $0.406 | $0.382 | $0.366 | $0.35 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.318 | $0.286 | $0.255 | $0.231 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8806-0-18-15-47-27-40-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .025-.037 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89529 pcs | Data sheet | Pin Receptacles (in) |
| Category | Connectors, Interconnects | Termination | Surface Mount |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.115" (2.92mm) | Series | 8806 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 8.80602E+15 8806018154727400 ED90599 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.115" (2.92mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.100" (2.54mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Surface Mount | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | 0.025" (0.64mm) |
| Accepts Pin Diameter | 0.025" ~ 0.037" (0.64mm ~ 0.94mm) |
