870-10-021-20-001000

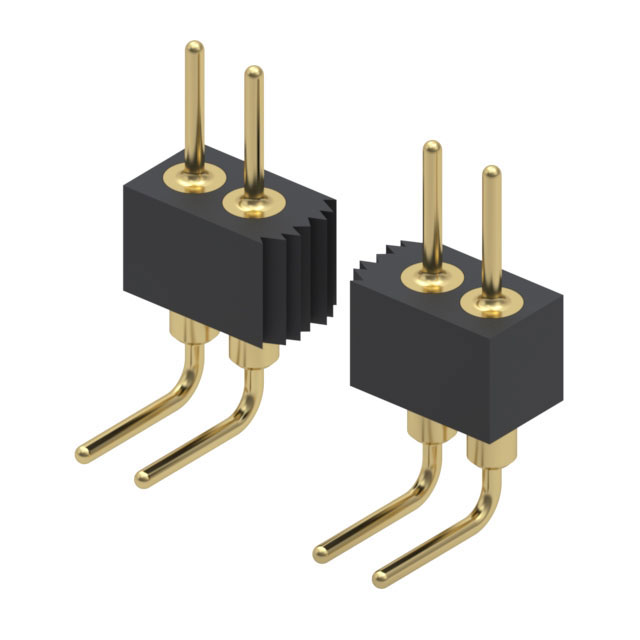

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 870-10-021-20-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 870-10-021-20-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 870-10-021-20-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | RIGHT ANGLE SHRINK-DIP HEADER 21 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 104 pcs | 507 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $2.683 | $2.571 | $2.124 | $1.789 | $1.565 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 870-10-021-20-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | RIGHT ANGLE SHRINK-DIP HEADER 21 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20750 pcs | Data sheet | 870, 871 Series (in.)870, 871 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 870 |
| Row Spacing - Mating | - | Pitch - Mating | 0.070" (1.78mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 8.701E+15 ED1051 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 21 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.104" (2.64mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 21 position 0.070" (1.78mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.133" (3.38mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
