862-40-021-00-180000

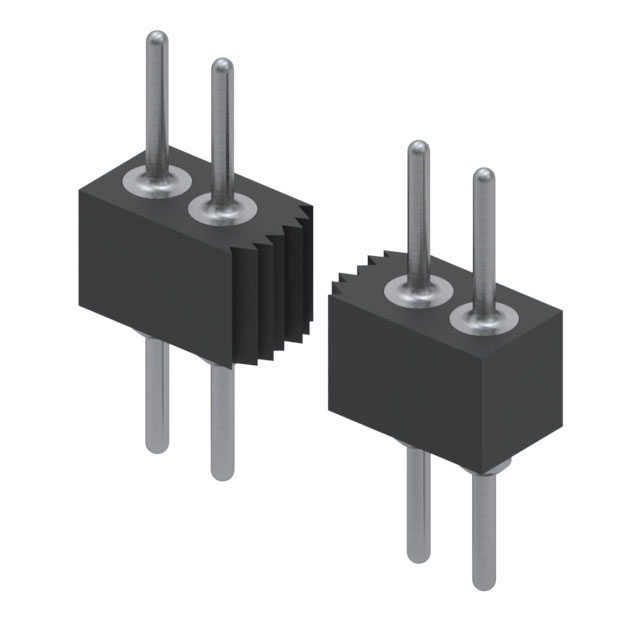

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 862-40-021-00-180000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 862-40-021-00-180000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 862-40-021-00-180000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER 21POS DIP TIN PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 104 pcs | ||
|---|---|---|---|---|---|
| $1.143 | $1.096 | $0.913 | |||
| 507 pcs | 1001 pcs | 5005 pcs | |||
| $0.776 | $0.662 | $0.594 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 862-40-021-00-180000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 21POS DIP TIN PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55638 pcs | Data sheet | 162, 862 Series (in.)162,862 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 862 |
| Row Spacing - Mating | - | Pitch - Mating | 0.070" (1.78mm) |
| Packaging | Tube | Overall Contact Length | 0.399" (10.13mm) |
| Other Names | 8.624E+15 8624002100180000 ED90309 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 21 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 21 position 0.070" (1.78mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.117" (2.97mm) | Contact Length - Mating | 0.142" (3.61mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
