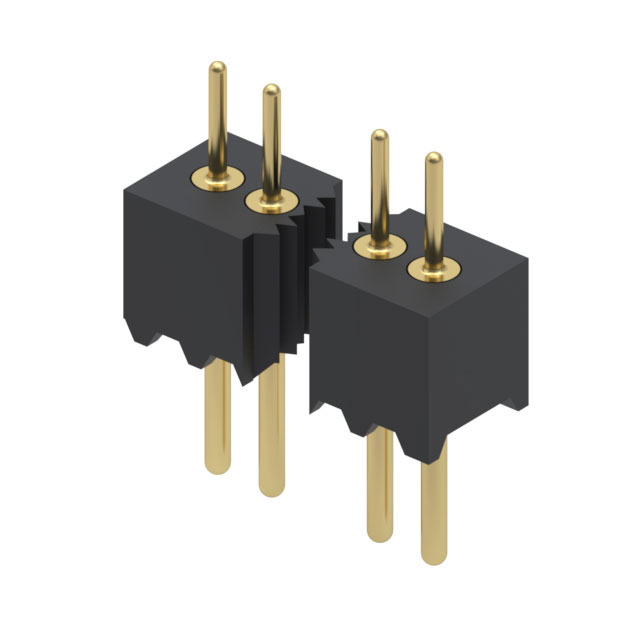

860-10-050-10-002000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 860-10-050-10-002000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 860-10-050-10-002000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 860-10-050-10-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | 1MM PITCH HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.947 | $2.819 | $2.371 | $1.986 | $1.756 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 860-10-050-10-002000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | 1MM PITCH HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18641 pcs | Data sheet | 860, 861 Series (in.)860, 861 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 860 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Overall Contact Length | 0.265" (6.73mm) |
| Other Names | 8.60101E+15 ED1111 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 50 position 0.039" (1.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.092" (2.34mm) | Contact Length - Mating | 0.075" (1.90mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
