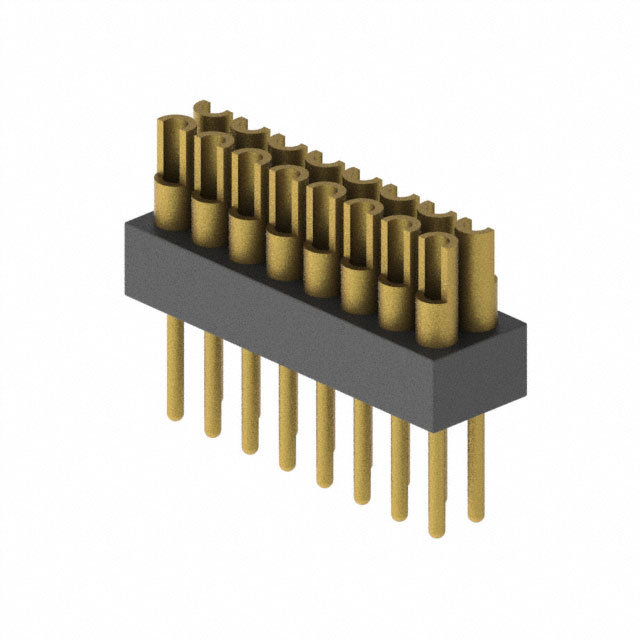

852-10-016-10-003000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 852-10-016-10-003000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 852-10-016-10-003000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 852-10-016-10-003000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | SOLDER CUP HEADER; .050" PITCH; |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 49 pcs | 147 pcs | ||
|---|---|---|---|---|---|
| $1.34 | $1.179 | $1.072 | |||
| 539 pcs | 1029 pcs | 5047 pcs | |||
| $0.911 | $0.777 | $0.696 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 852-10-016-10-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER CUP HEADER; .050" PITCH; | Lead Free Status / RoHS Status | |
| Quantity Available | 43531 pcs | Data sheet | 850,851,852,853 Series(in)850,851,852,853 Series(metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 852 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | 0.303" (7.70mm) |
| Other Names | ED10284 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.075" (1.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 16 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass Alloy | Contact Length - Post | 0.122" (3.10mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
