851-13-008-40-001000

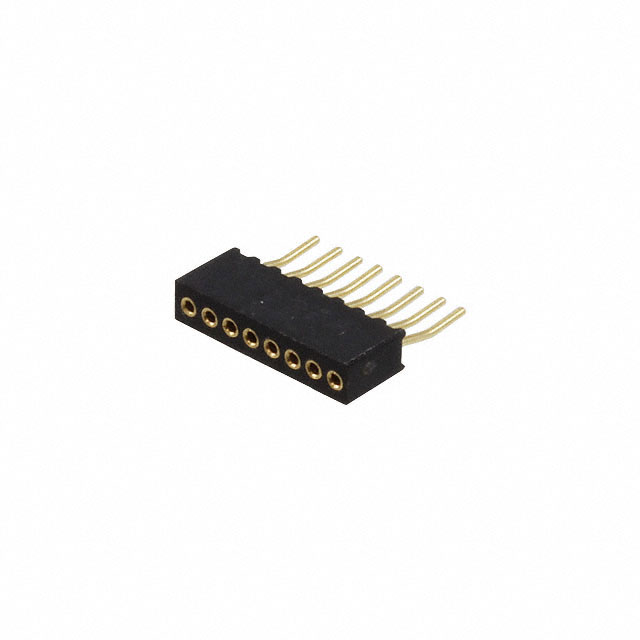

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 851-13-008-40-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 851-13-008-40-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 851-13-008-40-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | .050 8POS HORIZ SMT Z-BND SCKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.232 | $2.138 | $1.766 | $1.487 | $1.301 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 851-13-008-40-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | .050 8POS HORIZ SMT Z-BND SCKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24533 pcs | Data sheet | 850-10-0xx-40-001000 (metric)850-10-0xx-40-001000 (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 851 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Other Names | 8511300840001000 ED1325 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.087" (2.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
