8347-0-15-15-13-27-10-0

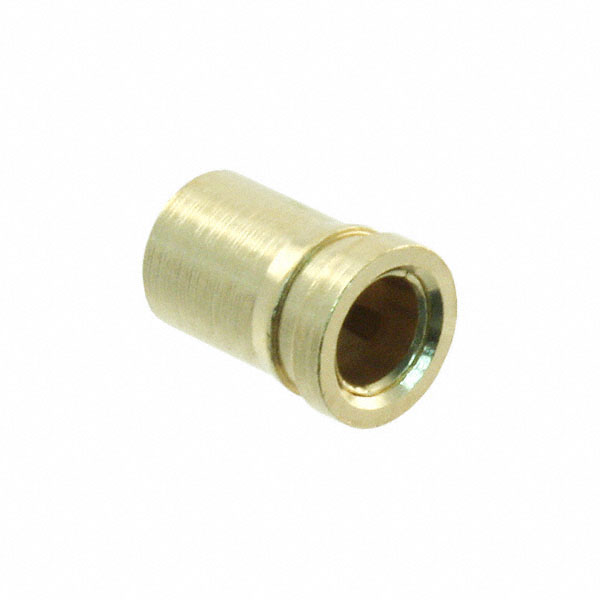

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8347-0-15-15-13-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8347-0-15-15-13-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8347-0-15-15-13-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | SOLDER MOUNT RECEPTACLE; ACCEPTS |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.265 | $0.233 | $0.219 | $0.21 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.183 | $0.164 | $0.146 | $0.132 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8347-0-15-15-13-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER MOUNT RECEPTACLE; ACCEPTS | Lead Free Status / RoHS Status | |
| Quantity Available | 154007 pcs | Data sheet | Pin Receptacles (in)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.250" (6.35mm) | Series | 8347 |
| Pin Hole Diameter | 0.088" (2.24mm) | Packaging | Bulk |
| Other Names | ED10184 | Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.109" (2.77mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 2.870" (72.90mm) |
| Insertion Force | - | Flange Diameter | 0.125" (3.18mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.048" ~ 0.064" (1.22mm ~ 1.63mm) |
