832-10-100-20-001000

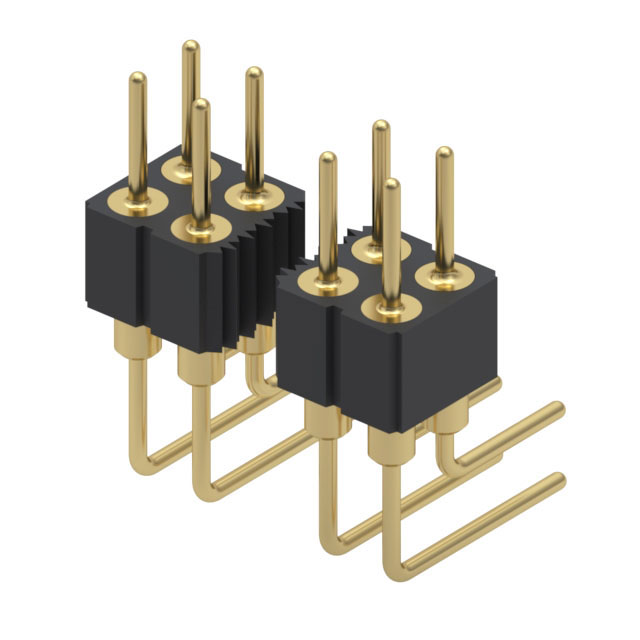

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 832-10-100-20-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 832-10-100-20-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 832-10-100-20-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER DBL 100PS R/A 2MM AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $6.133 | $5.695 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 832-10-100-20-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER DBL 100PS R/A 2MM AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5820 pcs | Data sheet | 830,1,2,3 Series (metric)830,1,2,3 Series (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 832 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 8321010020001000 ED90395 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.158" (4.01mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 100 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.142" (3.61mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
